EDA 500 Stand-alone Smokemeter

LThe most advanced diesel engine analyser for testing passenger cars as well as commercial vehicles. Utilizing the very latest “fully digital” processing technology the EDA 500 ensures that smoke emissions levels are measured quickly and accurately.

Standard features

6 clear LED display
-Integrated thermal printer
-Quick and easy operation
-Test passenger cars as well as commercial vehiclesµ
-High quality, aluminium smoke cell for repeatability of measurement with the minimum of maintenance
-Fast warm up with automatic zero & weekly calibration check
-Complies with the latest standards-CE approved

Ten EDA 500

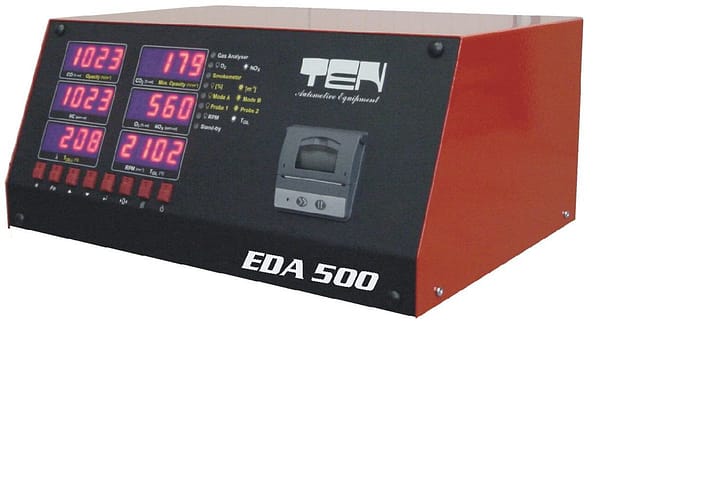

TheEDA 500 is a high performance diesel engine analyser incorporating the very latest fully digital processing technology for quick and accurate measurement of vehicle emissions. Approved for mandatory vehicle testing throughout Europe the EDA 500 utilises six clear LED displays and the integral thermal printer to provide a complete analysis of vehicle test results. The unique design and robust construction of the smoke chamber offers an opacity measurement facility which is ‘virtually’ maintenance free

With a comprehensive range of measurement parameters available the vehicle technician can easily perform the following tests

1.Official governmental mandatory testing.
2.Continuous data measurement

Overall the EDA 500 is probably the most versatile and user-friendliest diesel engine analyser currently on the market. With proven reliability and a competitive price the EDA 500 is a sound investment for the future


NER Zero Emission:
An exhaust extraction system designed to allow an accurate and clean measurement of diesel exhaust emissions within the workshop environment.

Deluxe Accessory Cabinet

HGV Exhaust probes:
For commercial vehicles 1 or 3,5 meter.HGV Oil temperature probe:For commercial vehicles 5-2,5 meter.

RPM Adaptors:
Optical and car battery sensing systems.


•Puissance absorbée : 220 / 240
•Volt Fréquence : 50 Hz
•Puissance maximale : 350 W
•Affichages : Imprimante LED : Thermal
•RPM : 100 – 9990 1/min
•Température de l’huile : 0-150 º
•Température de la cellule : 0-150 º
•Capacité : 0-99 % / 0-9,99 m-1
•Taille de l’unité d’affichage : 580 / 760 / 1300 mm
•Poids : environ. 10 kg

Manufacturer’s website : Ten-Automotive

Product website : Ten-Automotive-EDA-500
