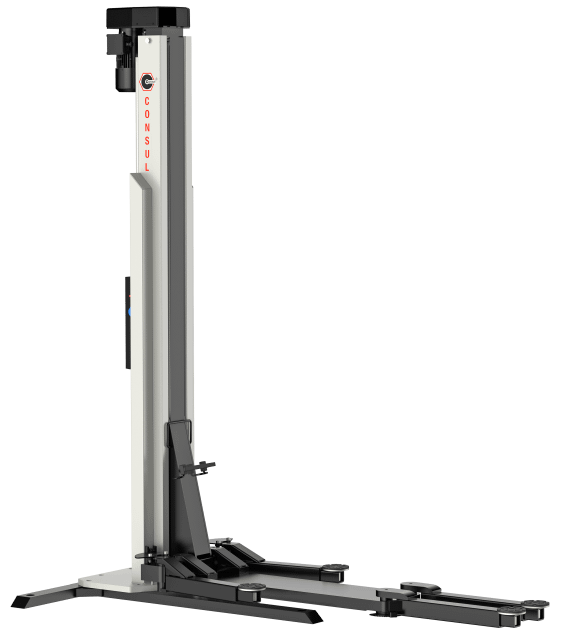

Consul – 1 Post Lift

Product Description

Suitable especially for body work and preparation for salvage yards. Also suitable for narrow areas.


Design features:

Special rolled section column, carriage guided by 6 rollers
Bronze load and safety nut
Oil dispenser for supporting lubrication
Anti-raise lock-down safety device
Push button control
Lockable main switch (as required by CE)
Acoustic foot protection
Belt drive motor with thermal protection
Lifting pads with hard-rubber profile and 25 mm height adjustment
Incl. hinged telescopic support arms, partly adjustable from the outside
Arm locking device, cushioning door stop
Without base frame for barrier free works under the vehicle
Protection class IP 54, GS-approved, DIN EN 1493, CE-approved


The technical data for the three first version of the 1 post lift Consul

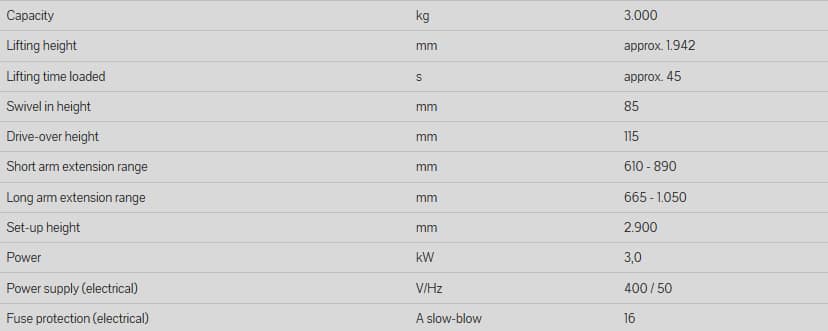

Thecnical data of the 1 post lift 1.30 CONSUL
