TEN – Innova 500-4

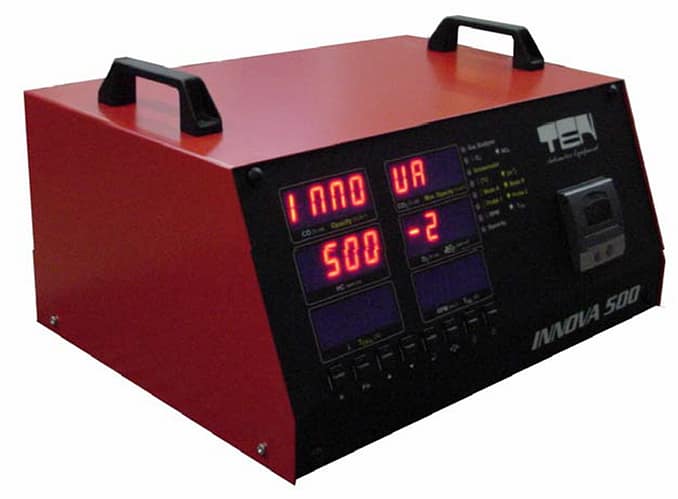

Multigaz Analyzer INNOVA 500

One of the most advancedemission analysers with clearLED 7-segment displays.Possibility to extend with the EDAII smokemeter.

Standard features

•6 large LED displays
•8 robust front keys
•Quick and easy operation
•Simple “step by step” test routines
•Integrated thermal printer
•RPM and Oil temperature measurement
•OIML Class 0 accuracy
•CE approved

The INNOVA 500 is a new “State of the Art” exhaust emission analyser incorporating the latest microcontroller technology and is designed to meet the highest standards and demands for tomorrow. The fully digital infrared gas bench technology provides rapid analysis of a vehicles performance with pinpoint precision of the exhaust measurement.Together with the clear LED displays, the built-in printer,

the INNOVA 500 is the most user friendly analyser for mandatory vehicle emission testing and fault diagnosis of today

The INNOVA 500 is equipped , as standard, with test features such as a RPM and Oiltemperature sensor, for a complete comprehensive diagnosis of petrol, LPG and CNG vehicle emissions. Test results can easily be analysed. The clear displays of the multigas analyser makes it simple to operate. Taking only a few minutes of the vehicle technicians time to complete a full emission test. Diesel measurement is also available as a key option.


Fully according to the MID (OIML class 0) specifications, the INNOVA 500 is recommended by several manufacturers. From conventional vehicles to the most advanced technology which may not yet be on the market, the INNOVA 500 embraces the leading edge in technology for now and in the future


•EDAII smoke meter  :
This fully integrated and uniquely designedsmokemeter will provide the INNOVA 500with a facility to test diesel exhaust emissions with the minimum of maintenance.

•NER Zero Emission:
An exhaust extraction system designed to allow an accurate and clean measurement of diesel exhaust emissions within the workshop environment

•EOBD scantool Kit  :
Approved EOBD kit to beconnected to the INNOVA 500

•RPM Adaptors:
Optical and car battery sensing systems

•NOx kit :
Electro-chemical NOx kit for NOx measurement


Puissance absorbée : 110 / 230 Volt
Fréquence : 50 Hz
Puissance maximale : 60 W
Afficheurs : Afficheurs LED
Imprimante : thermique intégrée
RPM : 100 – 7500 1/min
Température de l’huile : 0-150 ºC
CO : 0-10 vol. %
CO2 : 0-20 vol. %
HC : 0-10.000 vol. ppm
O2 : 0-25 vol. %
Lambda : 0,5-2,0NOx (en option) : 0-5.000 vol. %
Poids : environ 10 kg
