Description:

Very smooth running due to electro-mechanical drive
5-year warranty for spindle and support nut¹)
Wear-resistant plastic support and safety nut
Low wear through oil lubrication
Exceptional lifting column rigidity
The intelligent design eliminates the need for a base frame or cross bar
Ideal transporter intake through symmetrical lifting carriages
Optimal vehicle range from smart cars to vans with a long wheelbase thanks to large extension range of the double-extendible support arms (3-part)
Lifting height in excess of 2 m facilitates repair work and accessibility
No overrun thanks to braking system

A space-saving operating and control unit integrated in the lifting column with 16-symbol text display for operating and service instructions, featuring a robust membrane keypad and large buttons, combines design with optimum user convenience
Wear-free and non-contact inductive sensor for lift height detection
The microprocessor control for monitoring synchronous running and all safety functions is highly accurate and transforms the MAPOWER II into a state-of-the-art product
Service USB interface on the control board enables quick and easy maintenance access
Acoustic signal control as pinch protection (CE-stop) enhances occupational safety

First provider in the world in the workshop fitter segment with option of IoT module (Internet of Things):
High operational availability of the lifting platform through connection to the MAHA cloud service MUCS:
Telemetry data transfer in line with the MQTT protocol for remote maintenance
Predictive maintenance messages
Service call via lifting platform keypad

Optional additional control field in the counter column increases efficiency

MAPOWER design:

MAPOWER LED ambient light supports ambient lighting

MAPOWER engine hoods
MAPOWER logo on columns

High-quality powder coating with special paintwork available on request

Standard Delivery:

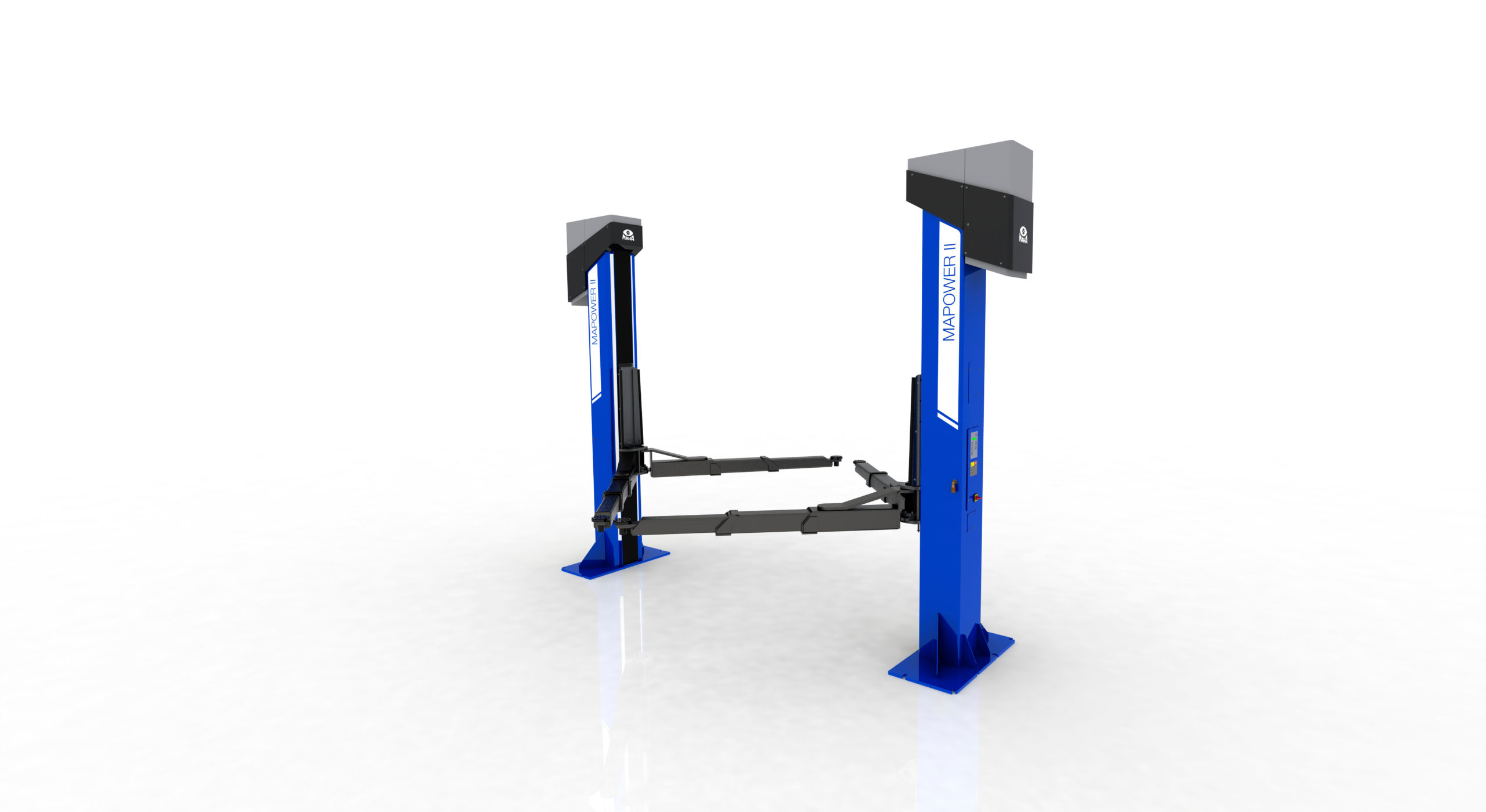

2 columns with operating unit in lifting column
Symmetrical support arms double-extendible
Support disc plug-in system
LED ambient light
Cable bridge
Spindle oil (0.25 l)
Operating manual and inspection log book
EC Declaration of Conformity CE
Transport packaging
