Werther – 301
Electro-mechanical asymmetric lift with chain drive
The Werther 301 is a two-post electro-mechanical lift with chain drive, designed for the asymmetric lifting of cars, wide vehicles and light commercials. It lifts 3,000 kg to 1,890 mm in 55 seconds. The 301/32 version raises the capacity to 3,200 kg.
Its self-supporting base allows installation on floors that do not permit ideal anchoring, and its pads come down to just 90 mm — a decisive point for low vehicles. Its three-stage short and long arms make it particularly suited to lifting off-road vehicles and long-wheelbase vans.
Equindus is a Werther dealer and installer based in Grass, Luxembourg. We equip garages, body shops and workshops in Luxembourg, Belgium and France, from defining the requirement through to commissioning and long-term support.

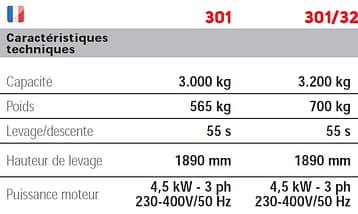

Technical specifications
| Specification | 301 | 301/32 |
|---|---|---|
| Lifting capacity | 3,000 kg | 3,200 kg |
| Weight of the unit | 565 kg | 700 kg |
| Lifting / lowering time | 55 s | 55 s |
| Lifting height | 1,890 mm | 1,890 mm |
| Minimum pad height | 90 mm | 90 mm |
| Motor power | 4.5 kW – three-phase 230-400 V / 50 Hz | 4.5 kW – three-phase 230-400 V / 50 Hz |
| Transmission | Pre-stretched high-resistance chain | Pre-stretched high-resistance chain |
| Operation | Electro-mechanical | Electro-mechanical |
| Certification | TÜV SÜD – CE marking | TÜV SÜD – CE marking |
Dimensions and footprint
Worth checking before any installation project: ceiling height and the width of the working area determine which model is suitable.
| Overall height | 2,670 mm |
|---|---|
| Overall width at floor level | 3,170 mm |
| Distance between posts | 2,460 mm |
| Clear opening between posts | 2,160 mm |
| Overall width, arms extended | 3,261 mm |
| Long arm travel | 755 to 1,240 mm |
| Short arm travel | 630 to 945 mm |
Design and safety
- Self-supporting base — easier installation on poor quality floor surfaces.
- Pads down to 90 mm — minimum pick-up height, for low vehicles.
- Three-stage short and long arms — asymmetric loading of wide and long vehicles, recommended by the manufacturer for lifting off-road vehicles.
- High-resistance chain transmission, pre-stretched, with a safety device monitoring slack.
- Permanent and automatic screw lubrication — nothing to do on a daily basis here.

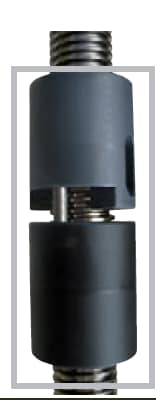

- Rolled high-resistance steel screw and Nylatron GSM main nut, resistant to wear.

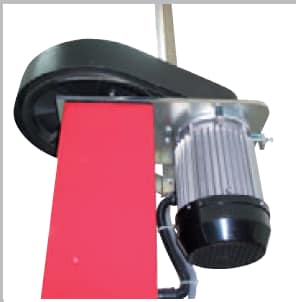

- Specially manufactured high-performance motor fitted with a thermal probe protecting against overheating and overload.

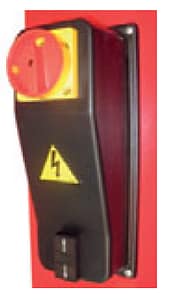

- 24 V dead man control — movement stops as soon as the operator releases the button.

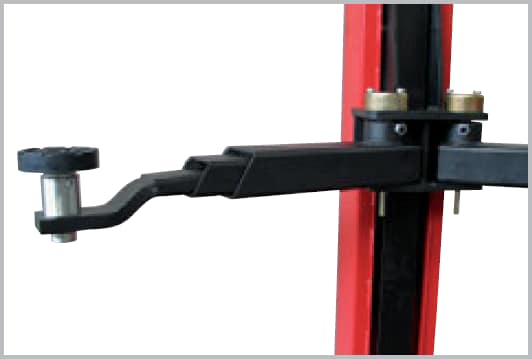

- Automatic locking and unlocking of the arms at floor level.
Options and accessories
- Lifting pad extensions (set of 4) — 100 mm (L953), 170 mm (L954) and 250 mm (L955). The 60 mm extensions (L956) are supplied as standard.
- Energy kit — tool support, compressed air connection and power socket built into the post.
- Click system lifting pads — quick fitting and removal.
Werther two-post range compared
The 301 is not always the most suitable model. Here is the range of Werther two-post lifts we distribute, so you can place each unit.
| Model | Capacity | Lifting / lowering | Lifting height | Motor | Type |
|---|---|---|---|---|---|
| 255 | 2,500 kg | 55 s | 1,890 mm | 4 kW | Electro-mechanical asymmetric, with base |
| 280A | 2,800 kg | 55 s | 1,890 mm | 4 kW | Electro-mechanical asymmetric, with base |
| 301 | 3,000 kg | 55 s | 1,890 mm | 4.5 kW | Electro-mechanical asymmetric, with base |
| 301/32 | 3,200 kg | 55 s | 1,890 mm | 4.5 kW | Electro-mechanical asymmetric, with base |
| 300S | 3,000 kg | 65 s (52 s optional) | 1,885 mm | 2 × 2.6 kW | Electro-mechanical twin motor, baseless |
| 300SEV | 3,000 kg | 55 s | 2,045 mm | 2 × 2.6 kW | Electro-mechanical twin motor, baseless |
| 232I | 3,200 kg | 45 s | 1,935 mm | 2.2 kW | Electro-hydraulic asymmetric, baseless |
| 232IH | 3,200 kg | 30 s | 2,025 mm | 2.2 kW | Electro-hydraulic asymmetric, baseless |
| 208i | 4,000 kg | 35 s | 1,950 mm | 2.2 kW | Electro-hydraulic symmetric, baseless |
Models with a base (255, 280A, 301, 301/32) are easier to install on an imperfect floor, since the base takes up the loads. Baseless models (300S, 232I, 208i) leave the floor completely clear between the posts, which makes moving around and working under the vehicle easier, but they require a floor slab in good condition. We check this point with you before any order.
Manual and documentation
Looking for the operating manual, the maintenance handbook or the wiring diagram for a Werther 301? We send the technical documentation matching your unit on request — tell us the model and, if you have it, the serial number shown on the rating plate on the post.
The full product sheet (specifications, dimensions and options) is available to download: Werther 301 / 301-32 catalogue (PDF).
Request the Werther 301 operating manual
Werther spare parts and service
We supply Werther spare parts for two-post lifts: Nylatron main nuts, transmission chains, lifting pads and extensions, contactors and control boxes, thermal probes and arm sets.
Our technicians also carry out preventive maintenance, breakdown repairs and periodic inspections of vehicle lifts, including on units we did not install ourselves. When requesting a part, please give us the exact model and the serial number: it saves an exchange of emails and speeds up the quotation.
Request a spare part or a service call
Installation, delivery and commissioning
A three-tonne vehicle lift is not something you unpack and plug in. We handle delivery, assembly, anchoring, the three-phase electrical connection, commissioning and operator training.
We work in Luxembourg, Belgium and France. For projects requiring installation, our teams travel from Grass. For spare parts and accessories we ship by carrier — including to French and Belgian garages that only need supply.
Frequently asked questions
What is the difference between the Werther 301 and the 301/32?
Lifting capacity: 3,000 kg for the 301, 3,200 kg for the 301/32. The 301/32 is also heavier (700 kg against 565 kg). Lifting height, cycle time and motor are identical on both versions.
What electrical supply is required?
The Werther 301 runs on three-phase 230-400 V / 50 Hz and its motor power is 4.5 kW. A single-phase supply is not suitable. We check that your installation complies before commissioning.
What kind of floor is needed?
The 301 has a self-supporting base, specifically designed to be installed on floors that do not allow ideal anchoring. That does not remove the need for a check: we verify the condition and thickness of the slab before installation, and we tell you plainly if it is not suitable.
Is the Werther 301 suitable for 4x4s and vans?
Yes. Its three-stage short and long arms allow the asymmetric loading of wide and long vehicles, and the manufacturer explicitly recommends it for lifting off-road vehicles. Pad extensions up to 250 mm are available for vehicles with high ground clearance.
Is the lift certified?
Yes, the Werther 301 is TÜV SÜD certified and carries the CE marking.
Do you carry out periodic inspections of the lift?
Yes. Our technicians carry out preventive maintenance and periodic inspections of vehicle lifts, on units we installed as well as on those supplied by someone else.
Manufacturer documentation
- Manufacturer website: Werther International
- Product page: Werther 301 / 301-32
- Werther 301 / 301-32 product sheet (PDF): download the catalogue
Figures taken from the Werther International product sheet. The manufacturer reserves the right to change specifications without prior notice — we confirm the data at quotation stage.
