Maha – MBT 7200 Lon W Classic

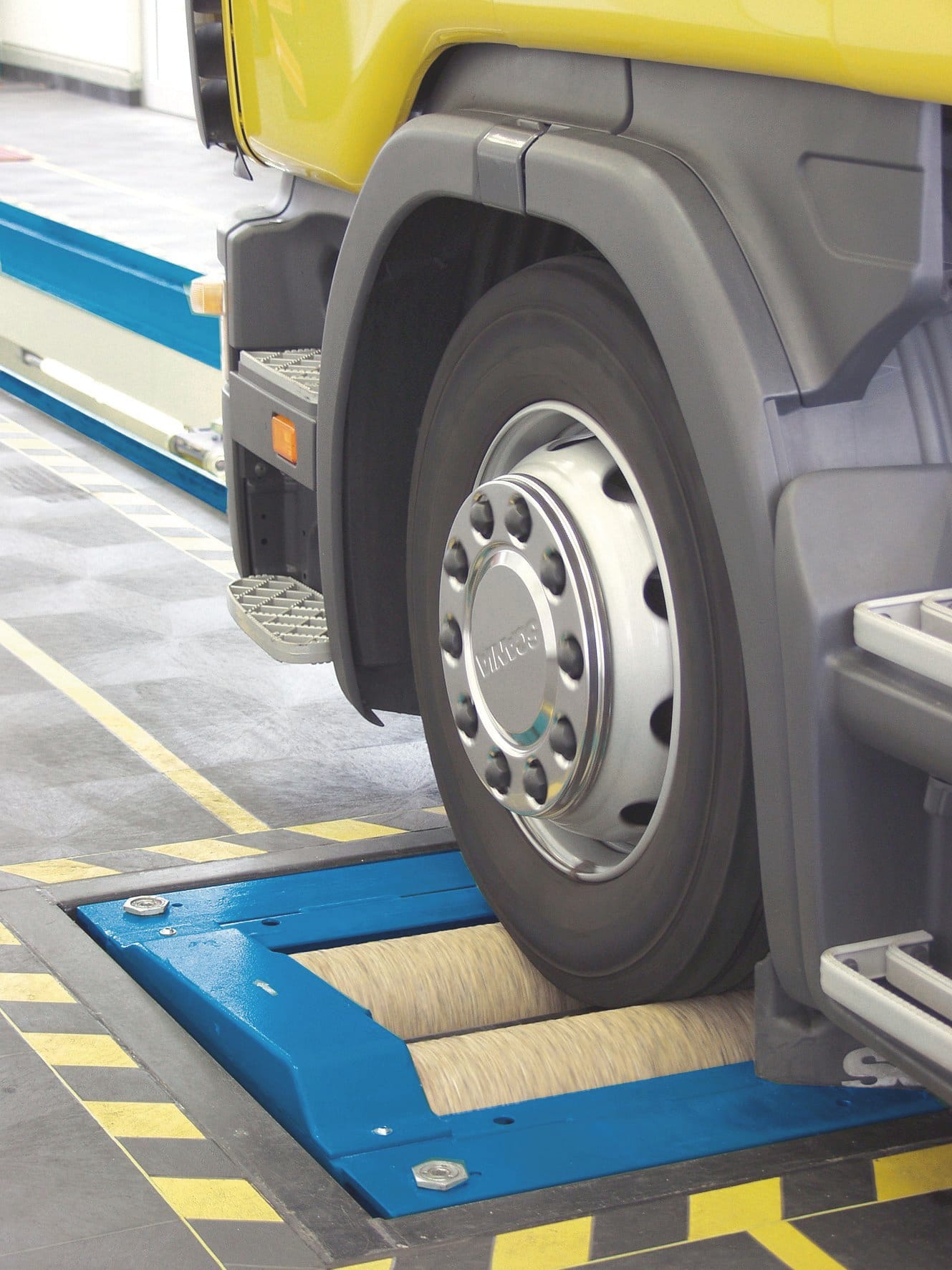

MBT-SERIES | Roller-Brake-Tester up to 18000 kg axle load

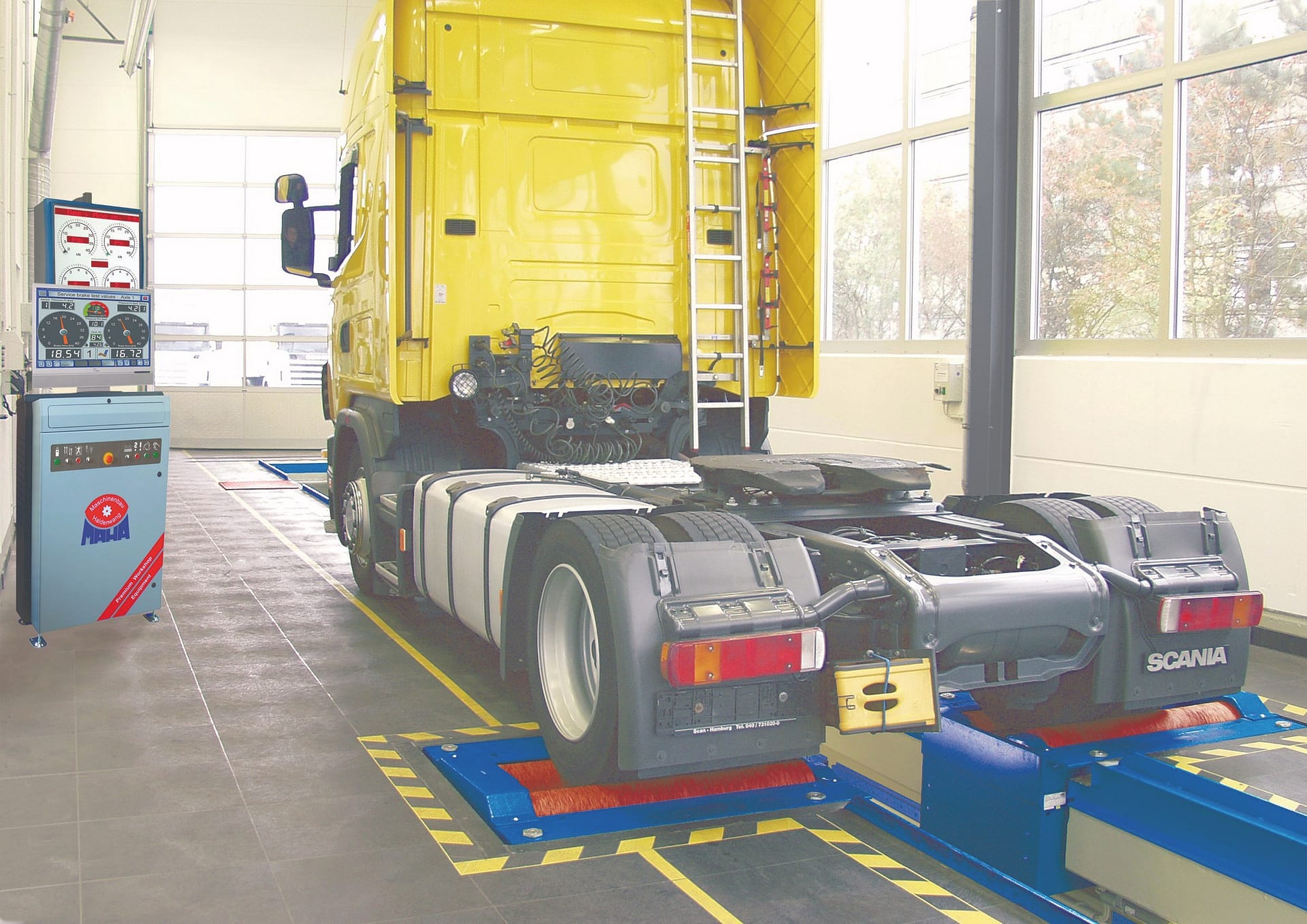

Perfectly suited to lorry diagnostics, even with a very high vehicle throughput

With the optionally available, integrated roller set lift:

For load simulation
For redistribution on an axle to be tested
No foundation modifications saves a substantial amount of structural effort

Service and installation-friendly design with maintenance flap
Large sensing roller with a diameter of 100 mm guarantees measurable coverage across all tyre dimensions

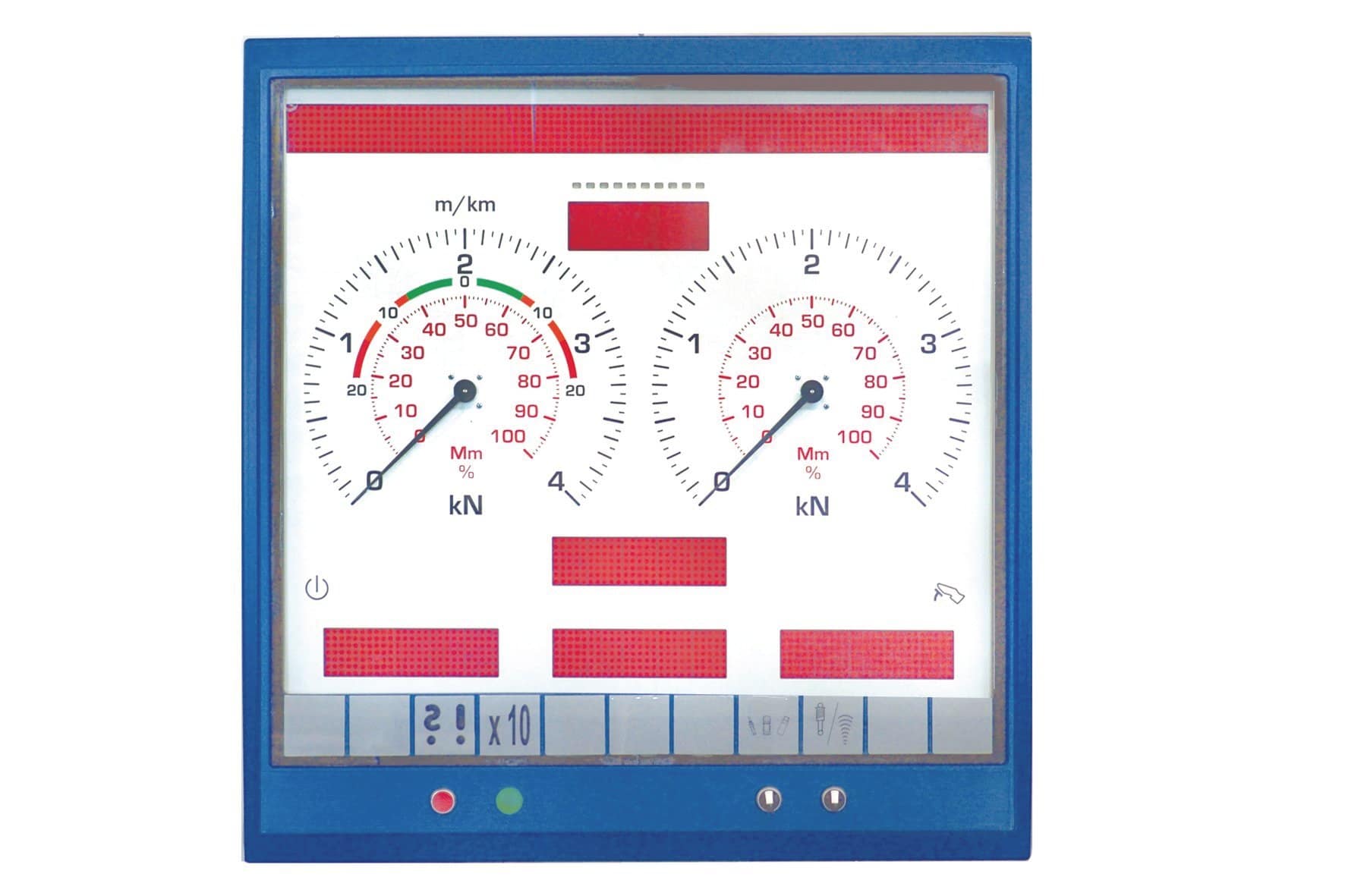

Multi-analogue display with two pointer indicators (Diameter: 2 x 350 mm)

Measured value display 0 – 4 kN / 0 – 40 kN

Display option for:

Brake tester
Wheel arch tester
Shock absorption tester

Difference display (three-digit + LED bar) for displaying:

Difference in braking force in %
Difference in shock absorption in %
Deviation in wheel arch in m/km
Results evaluation using additional coloured LED bars
User guidance using alphanumerical display

Program control using 32-bit microprocessor electronics enables the finest resolution for the measurement results
Dimensions of display (H x W x D) 910 x 870 x 300 mm
Dimensions of display with option* (W x H x D) 1060 x 870 x 300 mm
*With all-wheel regulation set

Comprehensive package of functions for professional testing, such as:

Delayed automatic switch-on after entering the tester
Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop and automatic restart already included as standard
Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
Automatic cut-off after exiting the tester
Single-wheel switching for differentiated consideration of each wheel

Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
Lockable main switch
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt (German Transport Gazette)
Star-delta circuit to avoid high inrush currents
RS 2 roller set design with space-saving motor integration underneath the test rollers
Rear roller elevated by 50 mm – guarantees highly precise measurement results, particularly for trailer axles.
Self-supporting divided roller set
Varnished with high-quality powder coating, gentian blue RAL 5010

Standard Delivery:

Analogue display with two pointer indicators and an integrated switch cabinet
MBT 7000 RS 2 roller set with preparation for weighing equipment
