Maha – MBT 3200 Lon

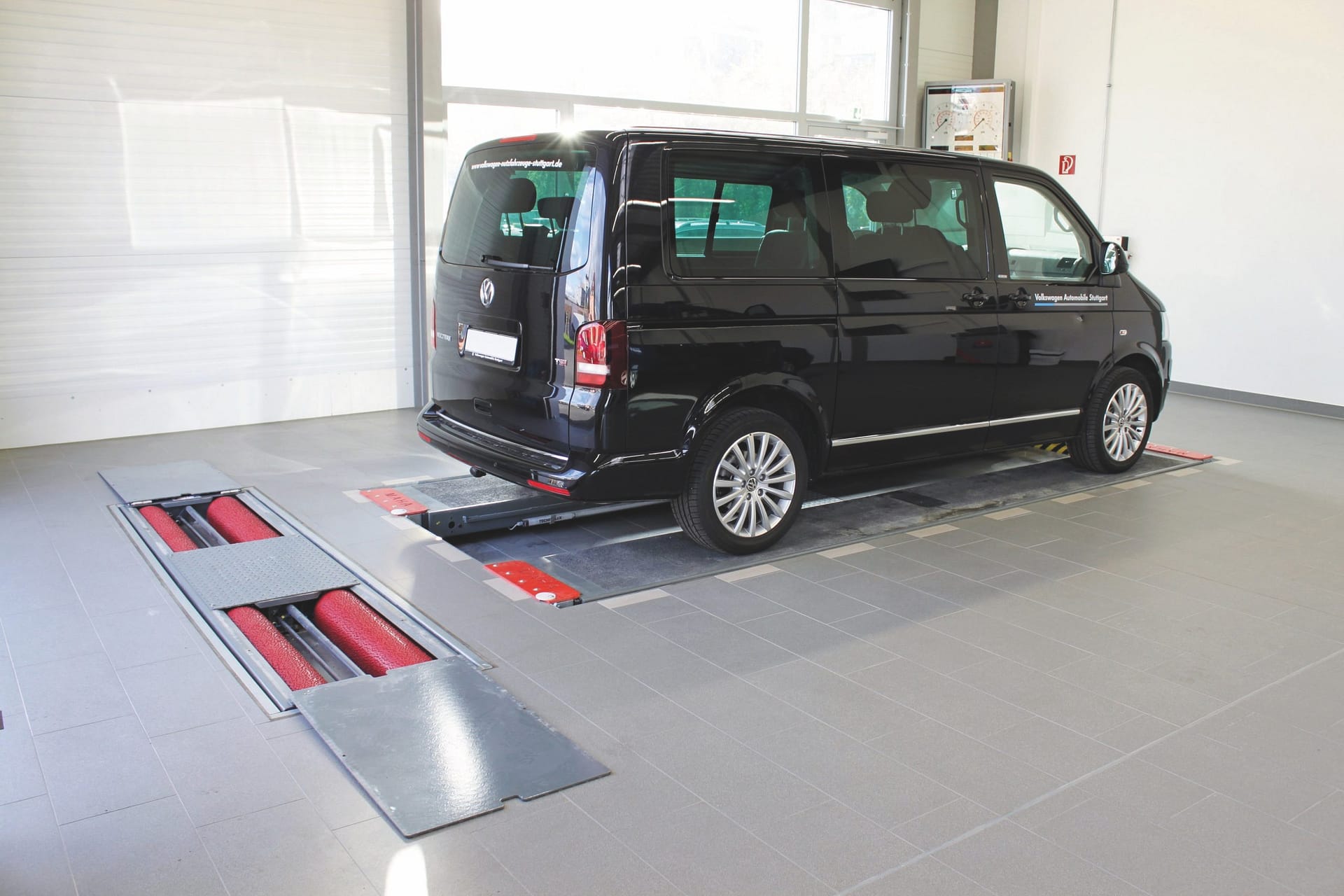

MBT-SERIES | Roller-Brake-Tester up to 8000 kg axle load


hanks to 8000 kg axle load and 2800 mm track width, particularly suitable for vans and light lorries
As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation.
Multi-analogue display with two pointer indicators (Diameter: 2 x 350 mm) and an integrated switch and electrical cabinet

Display option for:

Brake tester
Wheel arch tester
Shock absorption tester

Difference display (three-digit + LED bar) for evaluating:

Difference in braking force
Difference in shock absorption
Deviation in wheel arch

Program control using 32-bit microprocessor electronics enables the finest resolution for the measurement results
Dimensions of display (H x W x D) 910 x 870 x 300 mm

Comprehensive package of functions for professional testing, such as:

Delayed automatic switch-on after entering the tester
Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop and automatic restart already included as standard
Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
Automatic cut-off after exiting the tester
Single-wheel switching for differentiated consideration of each wheel

Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
Lockable main switch
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt (German Transport Gazette)
Star-delta circuit to avoid high inrush currents
Self-supporting closed roller set
Hot-dip galvanized design

Standard Delivery:

Analogue display with two pointer indicators and an integrated switch cabinet
MBT 3000 roller set with preparation for weighing equipment

Manufacturer’s website : Maha

Product website : Maha-MBT3200

Product PDF : TD_MAHA_MBT_3200_LON_VP410127_FR
