Maha – Es Square II 3.0 X

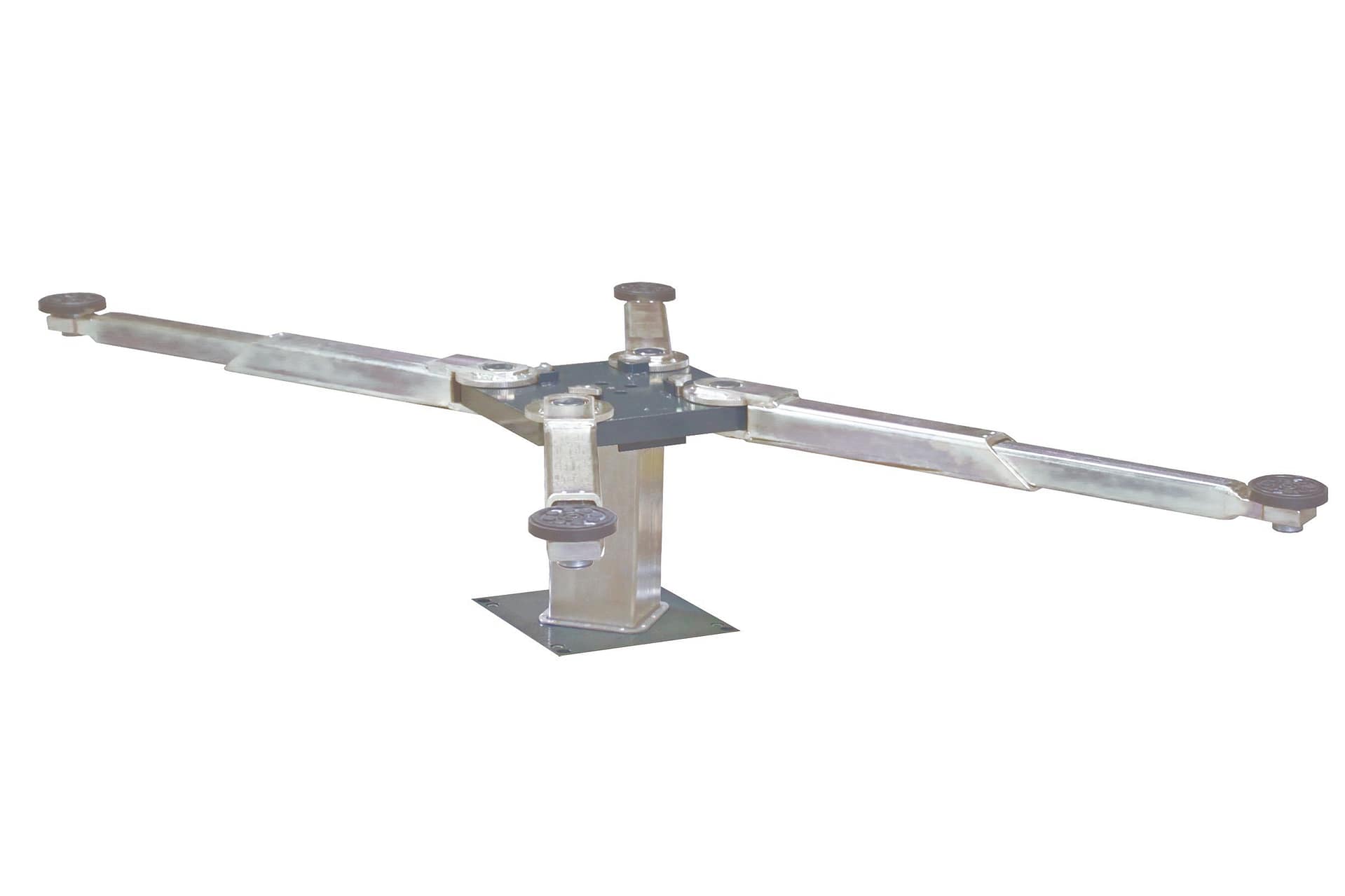

SQUARE | One Post Inground Lift with X mount and 3000 kg lifting capacity


X swing arm supports:

Free and unrestricted access to the vehicle during work in the sill and engine area
Swivel arm mount with infinitely extendible, 2-part support arms guarantees the utmost flexibility
Rapid and accurate take-up of vehicles thanks to height-adjustable turning plate with thread and plug-in system
Support raisers and form-locking vehicle mounts for secure vehicle fixing in the product range
Automatic support-arm restraint
Pinch point protection thanks to CE stop rather than foot guard

SQUARE lift unit:

Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
Outstanding rigidity and optimum safety thanks to torsion-resistant square post
Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
Electronic lift control with no-contact, wear-free limit switches and visual error display
Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
Protected internal hydraulic safety cylinders guarantee lengthy service life
High lifting/lowering speeds are guaranteed (each max. 26 s)
Battery-operated emergency lowering
Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system

Standard Delivery:

Swing arm support (X) X mount Central beam powder-coated, anthracite grey (RAL 7016), Swing arm extensions galvanised
Support disc and support raiser 50 mm
Lift unit with hydraulic assembly
Wiring and mounting material
Installation box/installation frame not included in delivery
Emergency DOWN cable for connection to switch box
Control unit with 2 x 10 m control cables (flexible oil cables)
Lockable master switch
Operating manual and test log
EC Declaration of Conformity CE
