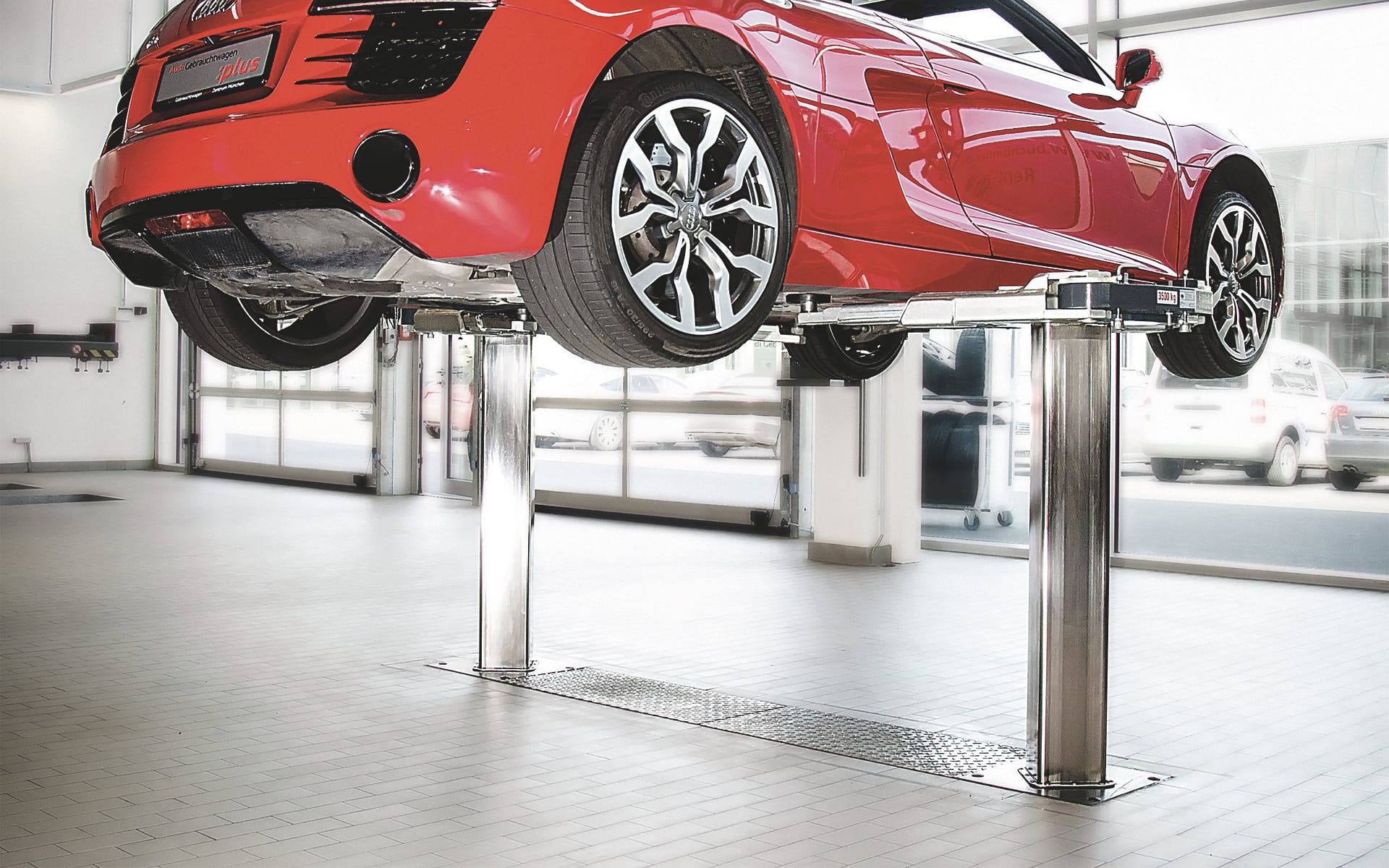

Maha – 2 Cylinder lifts ZS SQUARE II 3.5 S

SQUARE | Two Post Inground Lift with swing arm support and 3500 kg load capacity


Swing arm support:

Swing arm support with continuously telescoping 3-part support arms for large and flexible support area
Large drive-through width to facilitate driving onto the lift
Automatic support-arm restraint can be reached particularly easily from above for manual readjustment of the support arms in raised set-up condition
Optimum flat swing arm extensions with minimum pad heights of 75 / 77 / 89 / 101 mm
Accurate take-up of vehicles thanks to standard height-adjustable turning plates with thread and plug-in system
Support raisers and form-locking vehicle mounts for secure vehicle fixing in the product range
Optional flush installation with hinged-lid frame for flexible use of work area (various models)
Optional increase of max. lifting height to 2162 mm in conjunction with a deeper installation box (VZ 972520, various models)
Pinch point protection thanks to CE stop rather than foot guard

SQUARE lift unit:

Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
Outstanding rigidity and optimum safety thanks to torsion-resistant square post
Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
Electronic lift control with no-contact, wear-free limit switches and visual error display
Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
Protected internal hydraulic safety cylinder guarantee lengthy service life
Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
High lifting/lowering speeds are guaranteed (max. 30/20 s)
Battery-operated emergency lowering
Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system

Standard Delivery:

Swing arm support (S) with swing arm holder and swing arm extensions, anthracite grey (RAL 7016)
Support disc and support raiser 50 mm
Wheel nut tray, magnetic (2 pcs.)
Lift unit with movable yoke
Wiring and mounting material
Installation box/installation frame not included in delivery
Emergency DOWN cable for connection to switch box
Control unit with 2 x 10 m control cables (flexible oil cables)
Lockable master switch
Operating manual and test log
EC Declaration of Conformity CE
