LOW PROFILE SCISSORS LIFTS

Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position

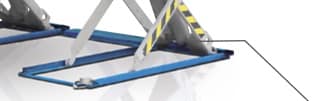

Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution

All pivot points made with self lubricating bushings for long life

No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)

Controlled speed during initial lifting and final lowering phase
Audible alarm during the final lowering phase

The minimum height from the floor guarantees easy and rapid positioning of the vehicle on the lift. The limited space required by the lift improves safety of the working area. Ideal for mechanical repairs, tyre shops and rapid fit facilities. It is also a good choice for service reception areas.

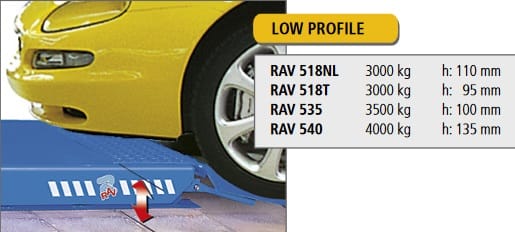

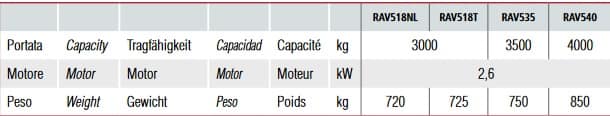

The RAV518 can lift up to 3000 kg, lifts between 720 and 725 mm and has a low height of between 95 and 110 mm;
The RAV 535 version can lift up to 3500kg, lifts 750mm and at 100mm low height.

---

---

---

Manufacturer’s website : Ravaglioli

Product website : Ravaglioli-RAV518

Product PDF : Ravaglioli – RAV518
