Maha – MBT 7250 Eurosystem

MBT-SERIES | Roller-Brake-Tester up to 18000 kg axle load


Perfectly suited to lorry diagnostics, even with a very high vehicle throughput

With the optionally available, integrated roller set lift:

For load simulation
For redistribution on an axle to be tested
No foundation modifications saves a substantial amount of structural effort

Service and installation-friendly design with maintenance flap
Large sensing roller with a diameter of 100 mm guarantees measurable coverage across all tyre dimensions
Visualisation of measured values, difference and graphics on monitor display
Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units

Comprehensive package of functions for professional testing, such as:

Delayed automatic switch-on after entering the tester
Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop and automatic restart already included as standard
Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
Automatic cut-off after exiting the tester
Single-wheel switching for differentiated consideration of each wheel

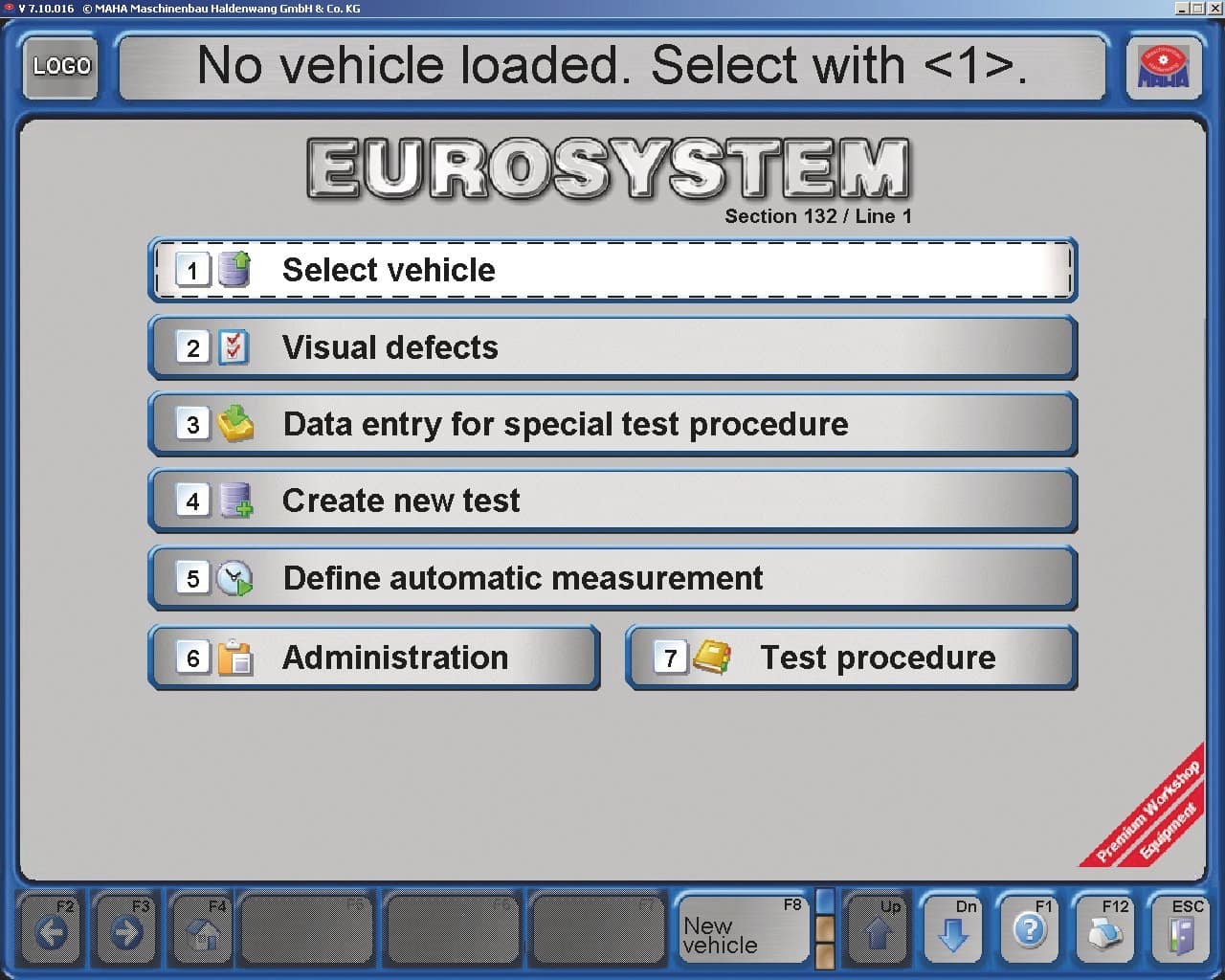

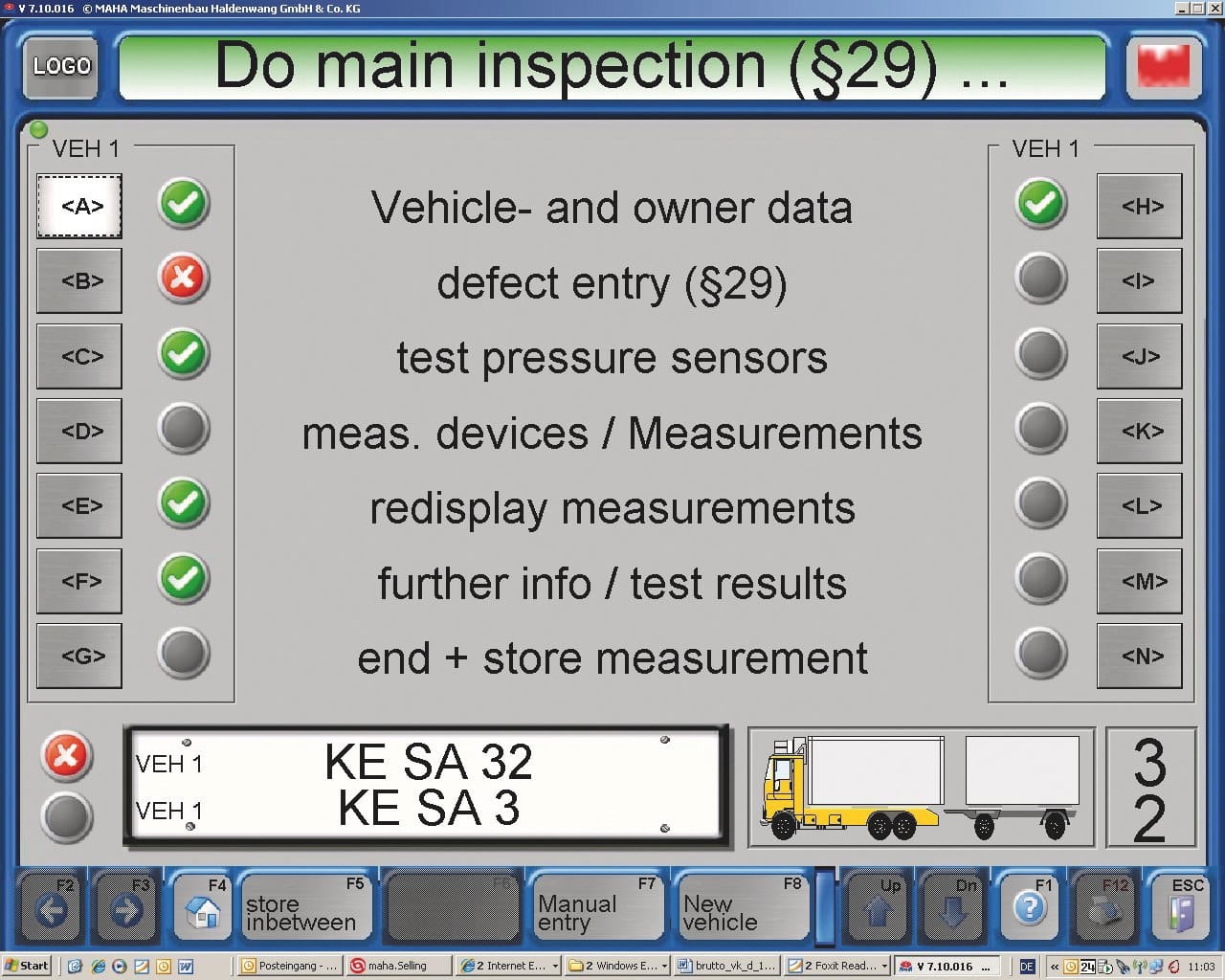

Intuitive-to-use EUROSYSTEM software for the highest expert standards with:

Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
Integrated user guidance with easy-to-understand user instructions
Continuous and graphic real-time display of all the measured values using the reference values time and force.
EUROSYSTEM supplied as standard with integrated SQL Server Express database
Multi-user capability option for productive allocation of the individual work packages to several workstations.
Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
Configurable test report with all the measurement and evaluation results of the tests performed on a single print-out

Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
Lockable main switch
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester

Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt [German Transport Gazette]
Star-delta circuit to avoid high inrush currents

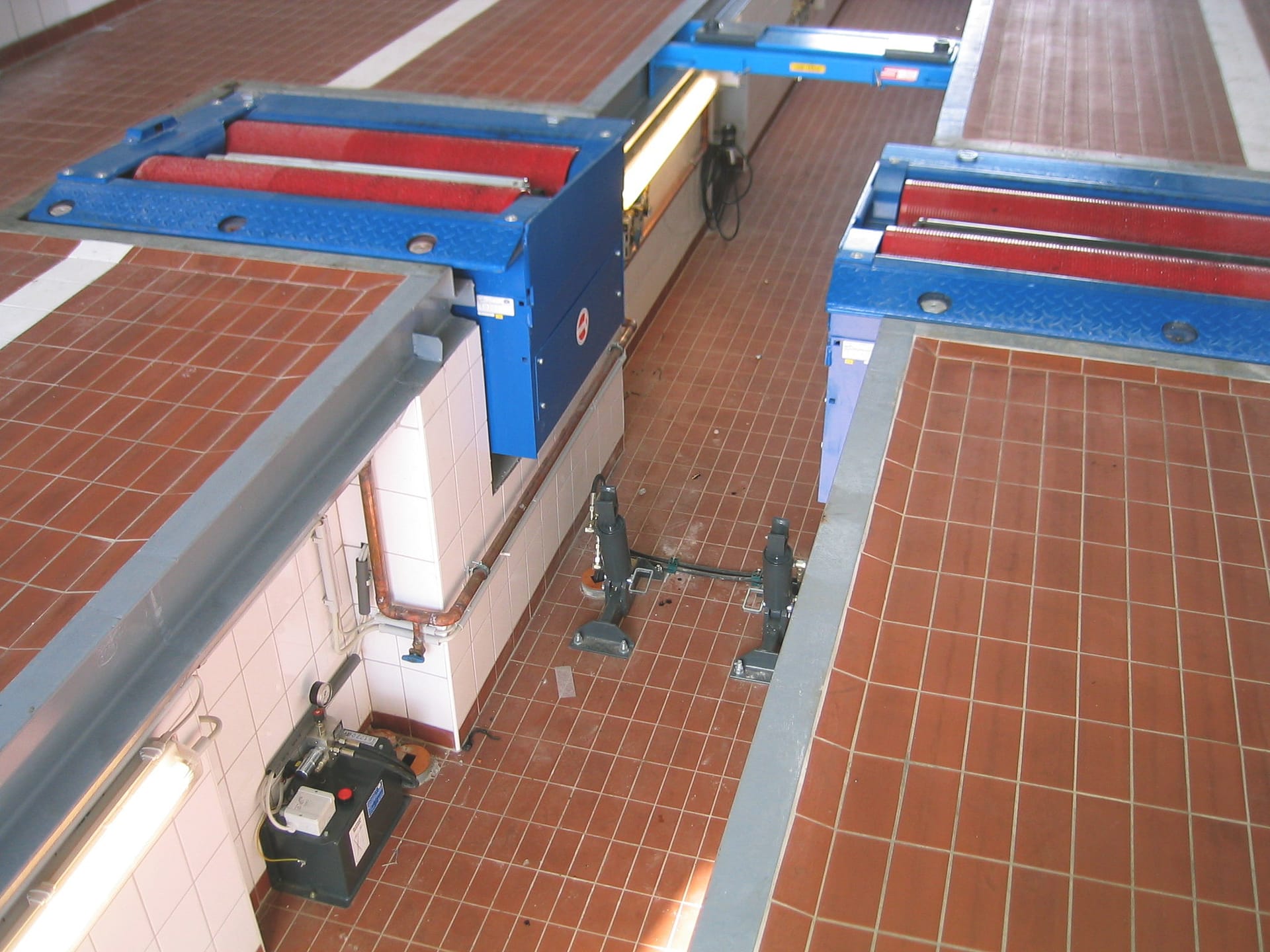

RS 2 roller set design with space-saving motor integration underneath the test rollers
Rear roller elevated by 50 mm – guarantees highly precise measurement results, particularly for trailer axles.
Self-supporting divided roller set
Varnished with high-quality powder coating, gentian blue RAL 5010

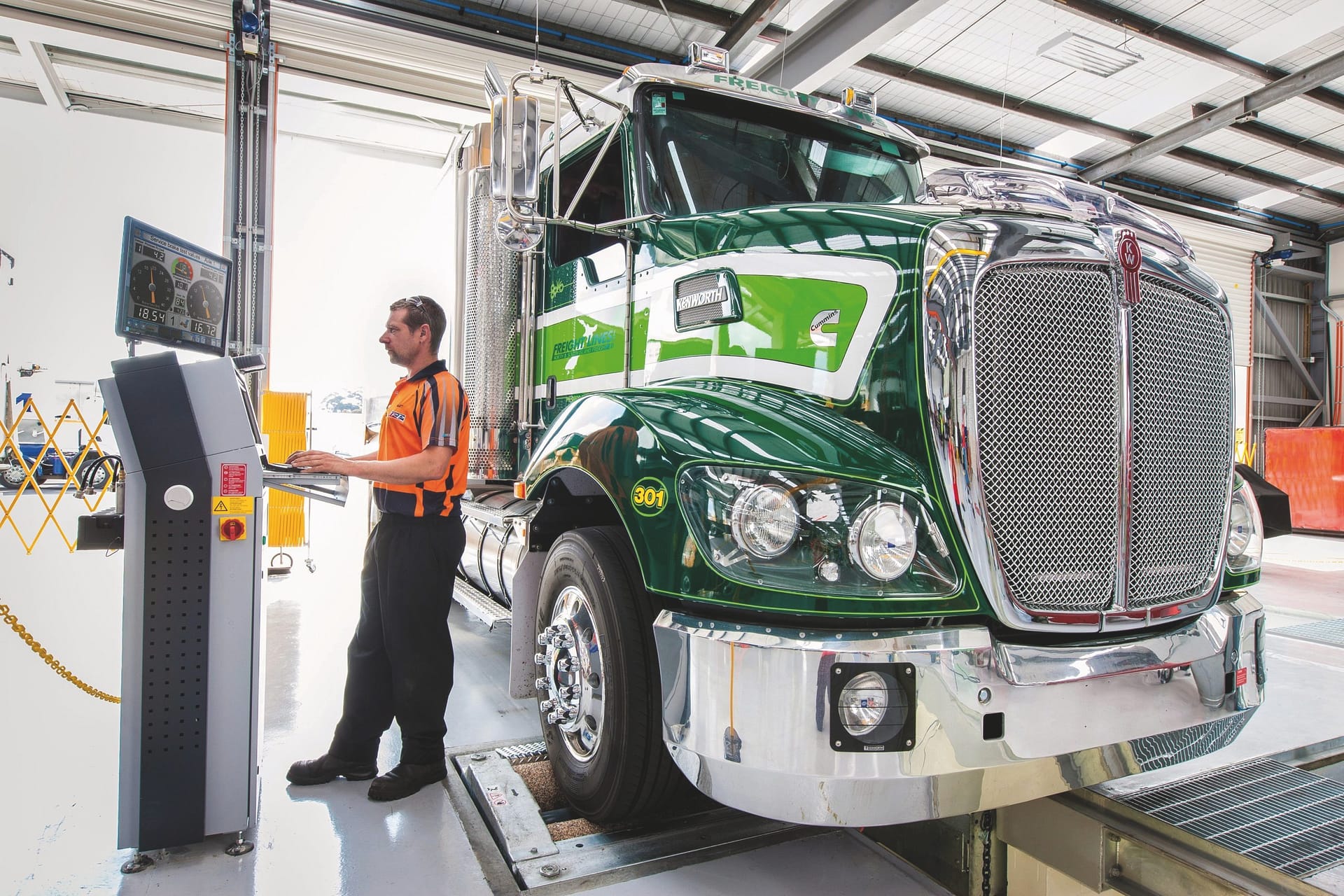

MCD 2000 communication desk:

Robust and multifunctional metal casing
Integrated switch cabinet for housing electronic components
Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
VESA standard bracket for holding the all-in-one PC or PC monitor
Can be extended with optional PC storage compartment or side shelves
Varnished with high-quality powder coating:

window grey, RAL 7040 (switch cabinet)
anthracite grey, RAL 7016 (side faces)

Dimensions of communication desk (H x W x D) approx. 1230 x 860 x 350 mm
with printer compartment option (H x W x D) approx. 1560 x 860 x 420 mm

Standard Delivery:

MCD 2000 communication desk with integrated switch cabinet
MBT 7000 RS 2 roller set with preparation for weighing equipment
