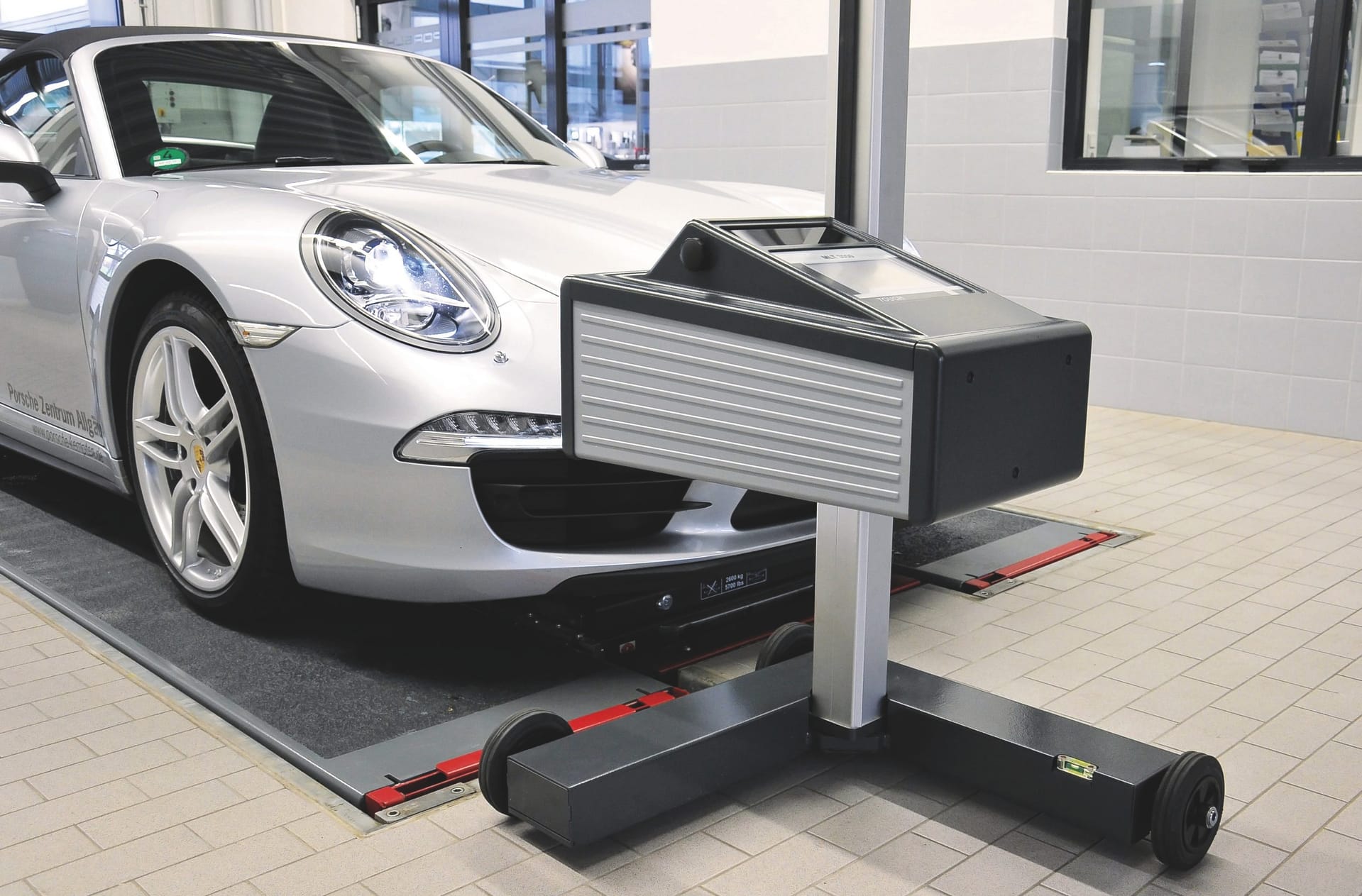

Maha – Headlight Tester MLT 3000

MLT-SERIES | Headlight Tester


Digital device for quick and objective testing and adjustment of vehicle headlights, taking into account statutory limits and OEM guidelines
Electronic levelling system to compensate for unevenness in the floor at the headlight tester installation site
7″ touch screen for menu navigation and display of measurement values
High dynamic range CMOS camera for capturing and digitising the headlight projection
Processor-supported unit control incl. flash memory
Digital analysis with evaluation of results
Optional interface for transmission of measurements to a PC
Powerful battery for cable-free long-term use
Robust construction, also suitable for test lanes
Rotatable mirror for device alignment to vehicle
Automatic latching of the light collecting box to the precision aluminium guide column facilitates handling and optimises reproducibility
Extremely thin Fresnel lens made from material with optimised refractive index for suppressing blue and red fringing increases measurement accuracy significantly
Large Fresnel lens for easy positioning in front of the headlights helps speed up the entire set-up process
Anodised heat deflection sheet to prevent overheating as a result of direct sunlight even without use of the device covering hood
Pre-configured as standard for use on optional guide rails so that equipment runs in straight line after alignment

Manufacturer’s website : Maha

Product website: Maha-MLT3000

Product PDF: Maha-MLT3000
