Maha – ES 93

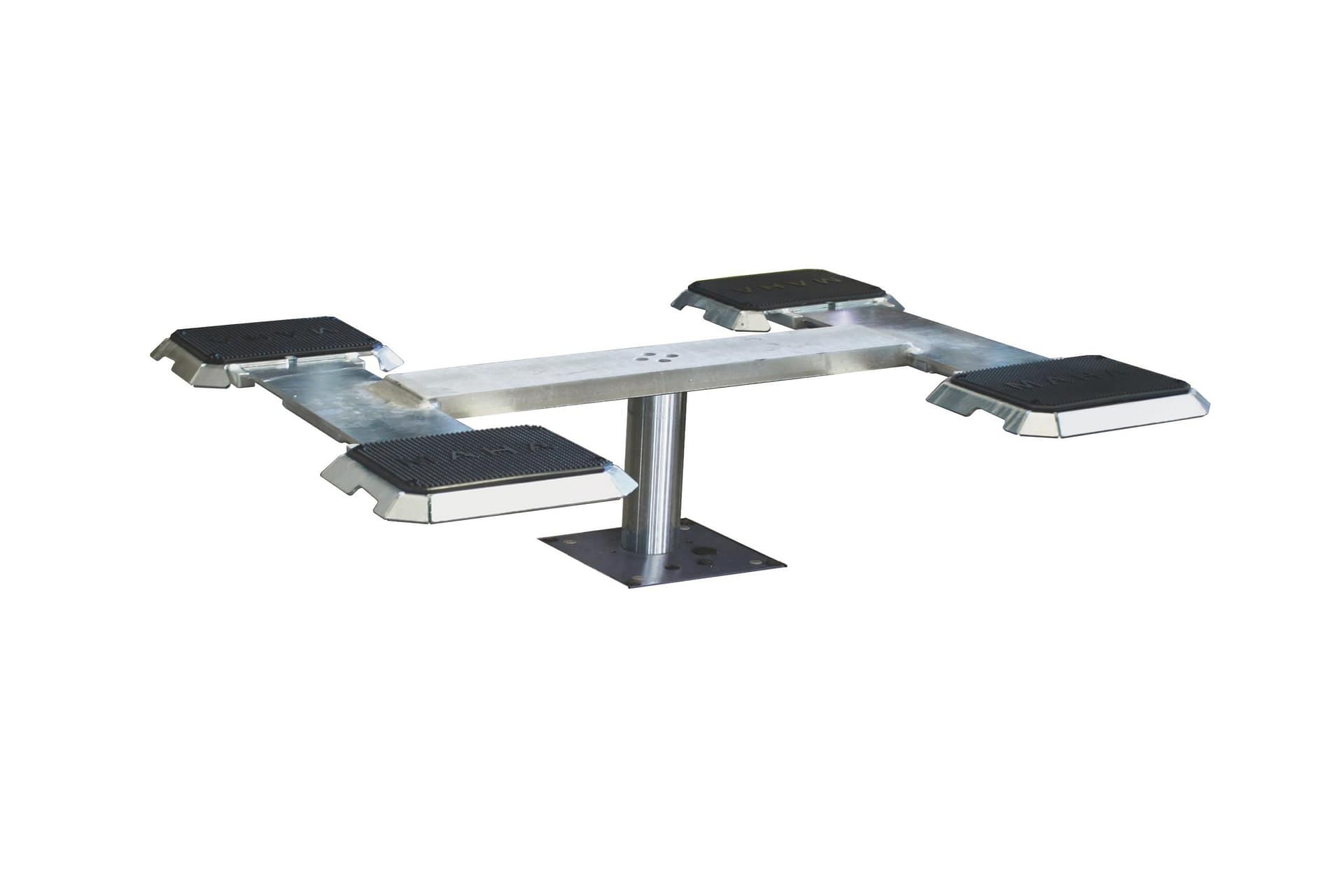

BARLIFT | One Post Inground Lift with H support and 3000 kg load capacity
Description:
H-flat lifting head supports:
Easier, tyre-preserving drive-on thanks to all-round bevelled pull-out elements combined with low construction height with rubber mounting plate (construction height no more than approx. 60 mm)
Large mounting area thanks to interchangeable mounting plate system which covers the entire vehicle spectrum
Flexible and optional range of mounting plates longer – wider – lower) guarantee optimum mounting of all current and future vehicle models
Ideally suited for washing bays thanks to protected hydraulic cylinders and the flat H-support mount which is pre-treated for protection against aggressive liquids
Rubber support plate allows for time-saving direct support
Ample freedom of movement in the working area below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
BARLIFT lifting unit:
Ultra-quiet hydraulic pump and electric motor, corrosion-resistant oil-submerged version, optionally available with organic oil
Fully electronic lifting platform control unit with assisting visual operating status display
Robust, hard chrome-plated lifting unit with rotation lock
Corrosion-resistant hydraulic piston ensures long-term stability since this is immersed in hydraulic oil with every lift, thus ensuring the application of a latent protective film.
Hydraulic unit integrated in the cassette (standard), may also be installed outside and thereby protected in the dry area where necessary
Simple, suspended lifting platform installation, offering the advantage of power transmission directly into the hall floor
Optimisation of every aspect of workplace ergonomics thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system
Pinch point safeguards by means of CE stop instead of foot guard
Battery-operated emergency lowering
Standard Delivery:
Flat lifting head supports (FT) hot-dip galvanised
Lifting unit with hydraulic power unit
Cable and mounting materials
Installation box / installation frame not included in scope of delivery
Emergency DOWN cable for connection to the control box
Control unit with 2 x 10 m control cable (Ölflex cable)
Lockable main switch
Operating manual and inspection log book
EC Declaration of Conformity CE
