Mac3 – MSP 2000 to 5000
Portable screw air compressors – 2,0 to 5,0 m3/min
SETUP

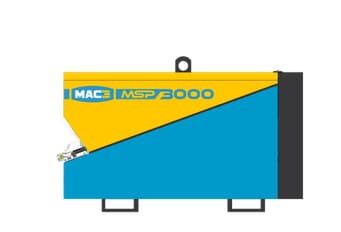

Standard SKID compressors
Configuration intended to be little manipulated.
•Remote emptying
•Stacking option = logistics costs savings
•Ideal installation at the back of a truck or pick-up

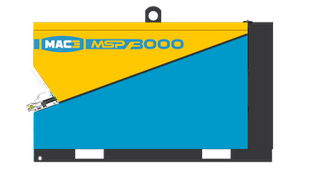

Premium SKID compressors
Configuration intended to be little manipulated.
•Remote emptying
•Stacking option = logistics costs savings
•Ideal installation at the back of a truck or pick-up
•Fork passages = manipulation from 4 sides
•Spillage free frame

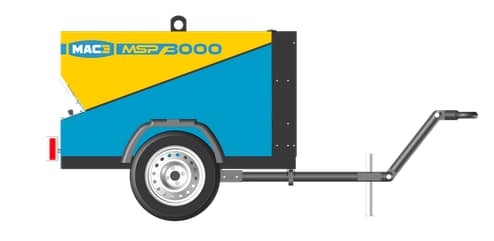

standard axle Compressors
•All models have a total laden weight of less than 750 kg

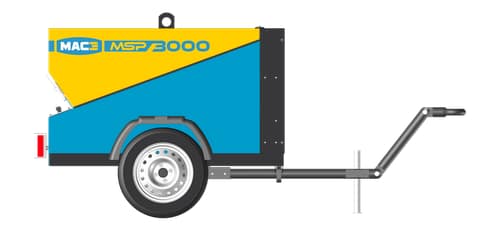

Premium axle Compressors
•All models have a total laden weight of less than 750 kg
•Remote emptying
•Fork passage
•Spillage free frame
Compressor on trailer
1 product = multiple uses :
•SKID compressor
•compresseur essieu Premium
•axle compresseur
•independant towable trailer
•Patented attachment system to separate trailer/MSP in 2 minutes
•Independent trailer for alternative uses
Characteristics
Motorization
KUBOTA motor-compressor unit
Gradual flow regulation = automatic adaptation of engine speed and air intake according to consumption
Starting system with closed valves = engine less stressed when cold
The most compact range on the market
Optimized grouping while ensuring excellent accessibility and a high level of performance
Balanced weight distribution on the axle for easier handling
Optimized dimensions for transport and export (up to 18 MSP per 20′ container)
Design & components
Operation at high ambient temperatures as standard
Ail-oil separation in 3 steps = superior compressed air quality
Electric diesel pump for full use of the tank and automatic priming of the diesel circuit
Easy maintenance
Easily removable bodywork to facilitate access to components :
Removable side panels
Hood articulated by gas cylinders and removable
Remote drain option and retention tank

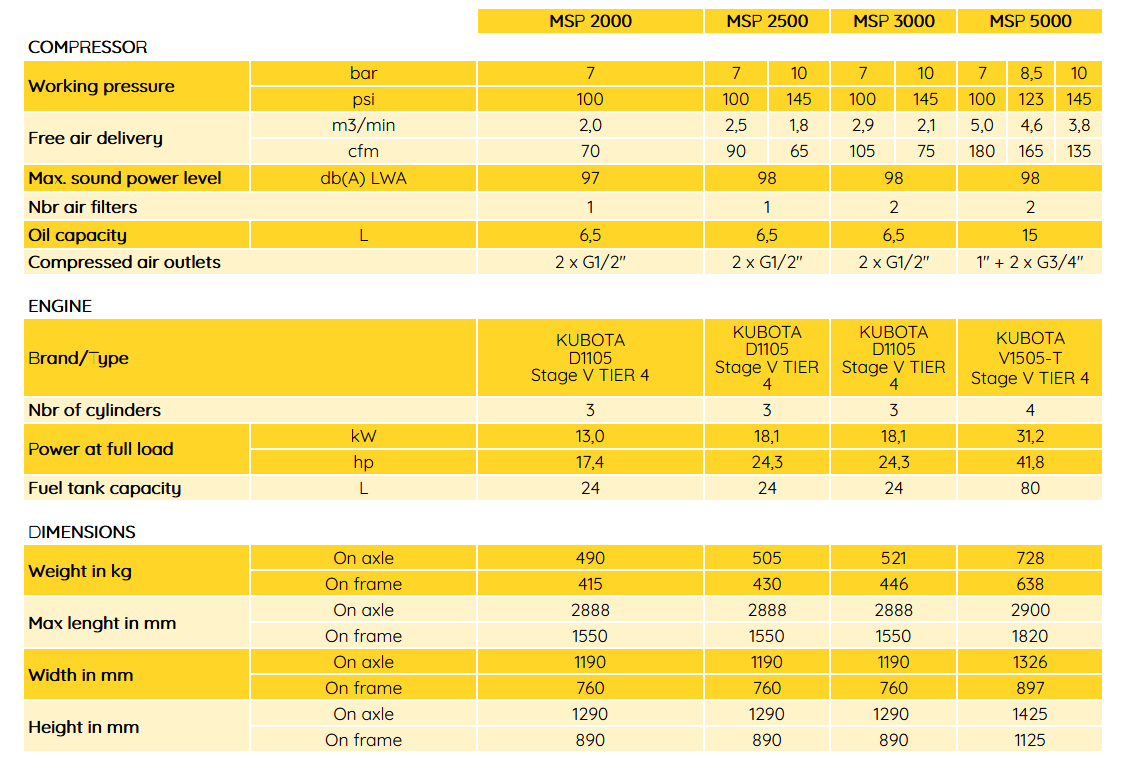

Specifications

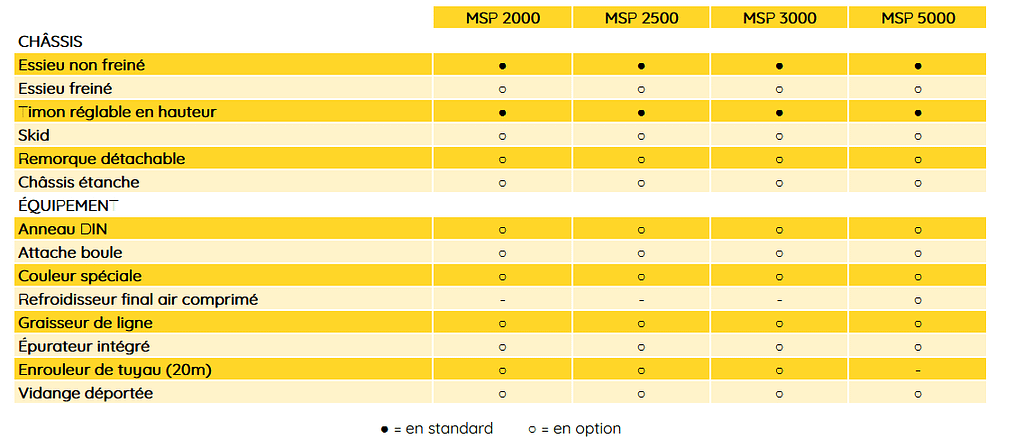

Options
Manufacturer’s website : Mac3
Manufacturer’s product : Mac3-MSP2000-5000
PDF product : MSP2000-5000
