Kaeser – TAH
Equipment
Refrigerant circuit
Refrigerant circuit consisting of reciprocating compressor
Fan-condenser assembly
Filter / dryer
Capillary tubes
Insulated air/air and air/refrigerant heat exchangers with integrated stainless steel (copper soldered) condensate separators
Hot gas bypass controller
Condensate drainage

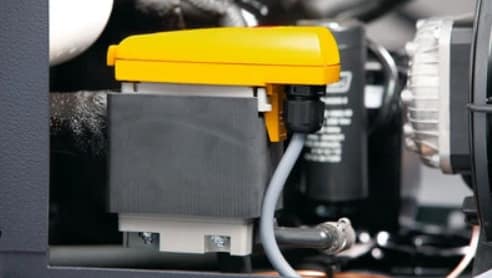

ECO-DRAIN 30 electronically-controlled condensate drain with tap on the condensate inlet, incl. cold surface insulation
Electrical equipment and displays
Mechanical dew point trend display
Electric equipment to EN 60204-1: lockable main switch with integrated mains isolation device
Enclosure
Powder-coated unit enclosure with removable hood and machine mounts

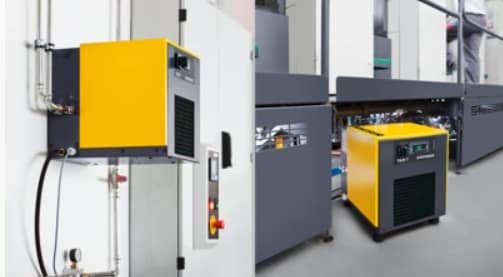

Prepared for wall mounting (only TAH series)
Connections
Design includes strain-relieved main connector cable (without plug)
Internally wired
Bulkhead pipe fitting for external condensate drain connection
Documentation
Includes operating manual and CE marking (EU version)
Optional :
“Pressure dew point warning” floating contact
Electronic thermostat with floating output terminal
mounted inside the unit, ready for operation
Signal can be picked up on-site directly at the output
Associated upper and lower switching thresholds configurable
Condensate drain, incl. floating contact
Alternatively equipped with ECO-DRAIN 31 electronic condensate drain with floating alarm contact
Signal can be picked up directly on the drain
Product PDF : Kaeser – TAH
