Electronic headlamp beam tester

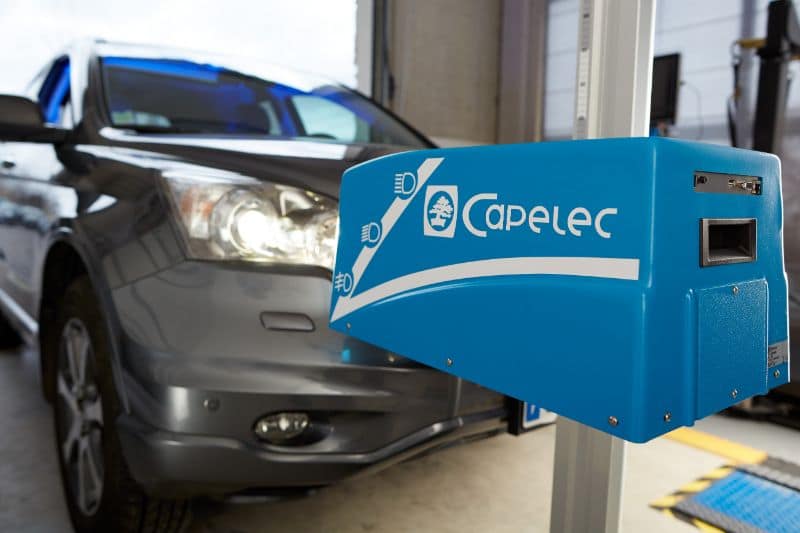

he electronic headlamp tester HBT is connected, modular and accurate. It allows the control and verification of the quality of the vehicle’s lighting. It can be used in a workshop or in a technical inspection centre MOT.
The data is collected, can be stored, printed or transmitted.


Description :

Color touch screen
Linux OS
S2600 software
Multilingual
Alignment laser
Positioning assistance
Connectivity: wired, wifi
Types of headlamps: fog, low and high beam
Measurements and values: cutoff, lateral, light intensity, glare,
Level compensation
Left and right-hand drive

Dual mode :

vehicle inspection (Roadworthiness, PTI, MOT) and repair (workshops, repair shop)
Headlamp adjustment, beam setters HBT : low beam, high beam and for lamp
Lighting technologies : Xenon, LED, filament


SPECIFICATIONS

Weight : 25 kg
Dim: L x l x H : 590 x 670 x 1 850 mm
Charge : quick automatic recharge in 3h30
Thermal printer
Column : 1,80 m
Communication ports : RS, USB, RJ45, wifi

AFS MODE

The Advanced Frontlighting System (AFS) advanced function allows the adjustment, calibration and parameter setting of MATRIX LED (VAG) headlights. It must be associated with a manufacturer’s diagnostic tool and follow the procedure.


OPERATION CONDITION

Battery : Lithium
Autonomy : 10h
Charger ower supply: 9V 2A
Ambient temperature: from 5 to 40°C
Storage temperature : -15 à +55°C
Relative humidity : < 98%
Vehicle range : automotive, HGV, motorcycle


MEASUREMENT

Cut-off measurement : -6/+6 %
Side deviation : -10/+10 %
Yall angle : -90/+90°
Roll angle : -90/+90°
Light intensity measurement : Lux 0/200 lx or Candela 0/12 500 cd
Accuracy : Lux 5%


Options

– Guiding handle
– Protective cover
– Base conversion kit
– Screen protection
– Mirror
– Storage cover


Versions

– Base : wheel or rails


Applications

– Automotive
– HGV (bus, trucks, lorries)
– Motorcycle

– AFS-Matrix beam (volkswagen)
