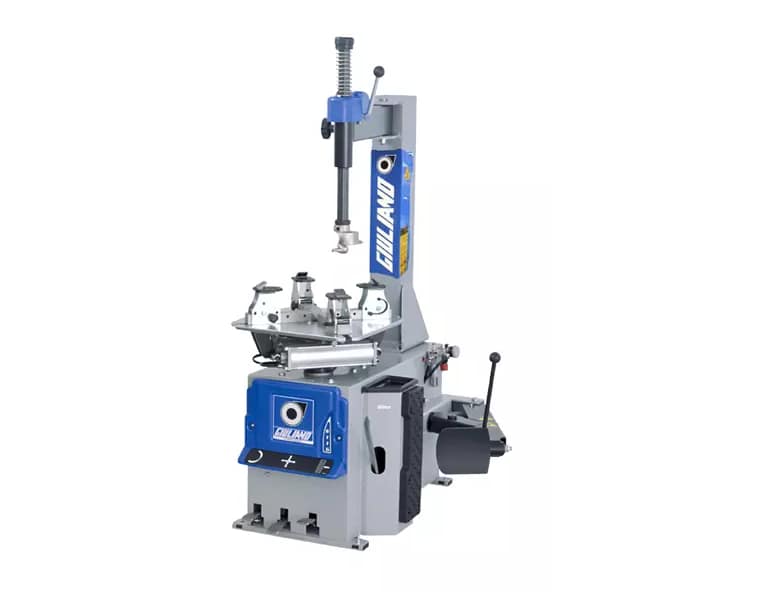

Semi-automatic swing arm tyre fitting machine for motorcycles, scooters & ATV tyres with rims from 6" to 24" (max. wheel diameter 1010 mm./39", max. wheel width 240mm./9,5").

---

Functions

Robust vertical tower, swinging horizontal arm with ø 36 mm operating arm;
Bead breaker double effect Cylinder ø 200 mm;
Reinforced Chassis;
Tabletop thickness 12 mm, specially designed for motorcycle wheels;
Fitting head designed for both standard and low profiled tyre applications;
Plastic protections on fitting head to avoid any damage to alloy rim;
Four motorcycle clamping jaws adjustable to 4 different positions: 6”-13”, 10”-17”, 14”-21”, 17”-24”;
Two powerful clamping cylinders provide uniform clamping pressure;
Tyre inflation by pedal (optional);
Suitable for Press Arm Eco (optional).

---

---



---
