Consul – Z-Line 4152 RF ASD

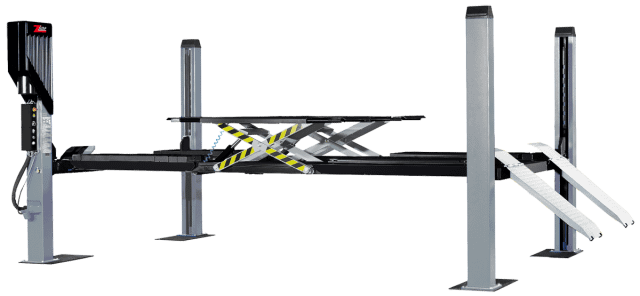

Z-Line 4 post lift type Z4152 RF-ASD

Product Description:

The ideal lift for technical inspection: 4 post lift with integrated axle play detector, integrated auxiliary lift (3.500 kg) and long, broad adjustable platforms for safe drive-on.

Equipment

Reliable electro hydraulic drive with low noise hydraulic under oil power unit
Power transmission through traction cylinder
Variable platform distance
Serially rail for jacking beam
Integrated auxiliary lift (Master/Slave hydraulic system), extendable both ways,
incl. 4 elastomer adapters 250 x 150 x 20 mm
Integrated pneumatic axle play detector, can be swiveled 10° both ways, with drive-on wedge
Locking device for wheel alignment every 100 mm via pneumatic locking system (8 bar)
Serially long drive-on ramps (1.000 mm) for sporty vehicles
Incl. 2 air connections and 2 air wrench holders
Safety signal tone at lowering in foot area
Lifting and lowering via ergonomic push button control
Operation in drive-on direction front left
Optional with post clearance 3.000 mm
Protection class IP54, GS-approved, DIN EN 1493, CE-approved
