Consul – Z-Line 4152 ASD

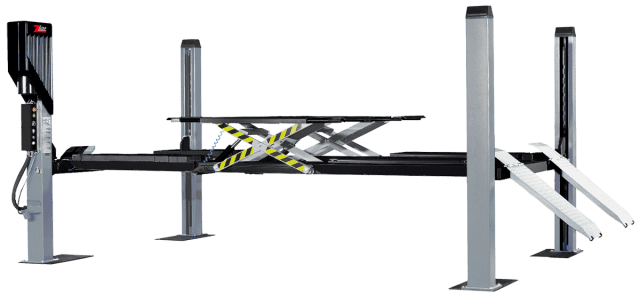

Z-Line 4 post lift type Z4152 ASD

Product Description:

The ideal lift for technical inspection: 4 post lift with integrated axle play detector and long, broad adjustable platforms for safe drive-on.


Reliable electro hydraulic drive with low noise hydraulic under oil power unit
Power transmission through traction cylinder
Variable platform distance
Serially rail for jacking beam
Integrated pneumatic axle play detector, can be swiveled 10° both ways, with drive-on wedge
Locking device for wheel alignment every 100 mm via pneumatic locking system (8 bar)
Serially long drive-on ramps (1.000 mm) for sporty vehicles
Incl. 2 air connections and 2 air wrench holders
Safety signal tone at lowering in foot area
Lifting and lowering via ergonomic push button control
Operation in drive-on direction front left
Optional with post clearance 3.000 mm
Protection class IP54, GS-approved, DIN EN 1493, CE-approved
