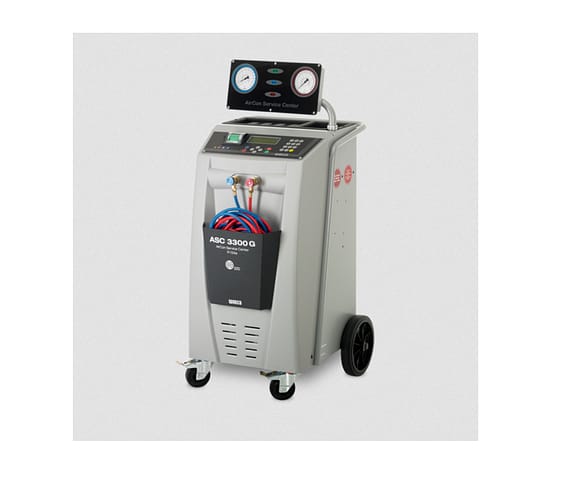

Waeco – ASC 3300 G
Air conditioning service unit for R134a, 26 kg
High-volume, fully automatic A/C service unit – specially designed for buses, trains, helicopters and custom applications. Humidity-free storage and feeding system for fresh oil and UV additive, data printer and dust cover included as standard.

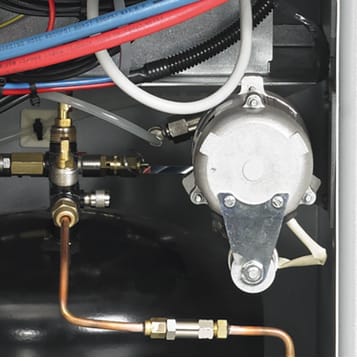

Integrated fluid pump
For fast recharging of high-volume A/C systems

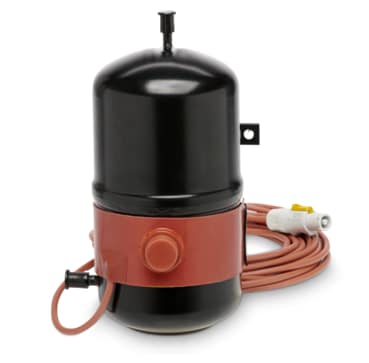

Optional heat belt
Faster recycling – up to 80 % less work time for A/C service on high-volume A/C systems

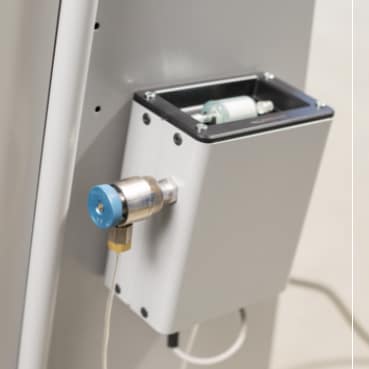

Optional gas analyzer
Meets SAE standard, with robust metal housing and gas probe on low pressure side
…And more
Fully automatic A/C service – saves time in the workshop and prevents costly downtimes
Comes with high-capacity vacuum pump and additional fluid pump – designed for large vehicles
Heated charging cylinder for high-speed charging – heat-up also possible during the charging process
Optional heat belt for faster recycling saves up to 80 % work time during A/C service
Heavy-duty design with 8-bearing weighing platform – no calibration needed
Humidity-free storage and feeding system for fresh oil and UV additive
Approved by Deutsche Bahn, EvoBus, OMNIplus, Valeo
Professional A/C service on buses and trains
Save valuable time when servicing the air conditioning on large vehicles such as buses and trains. Since downtime is extremely costly for operators, speed and reliability are vital. Key service tasks such as refrigerant recovery, evacuation and refrigerant recharging need to be performed within a tight timeframe. The WAECO ASC 3300 G perfectly meets these requirements. Featuring a 192 l vacuum pump and an extra fluid pump, the fully automatic service unit guarantees fast and efficient refrigerant recharging. It can be upgraded with a heat belt to save a further 80 % work time.

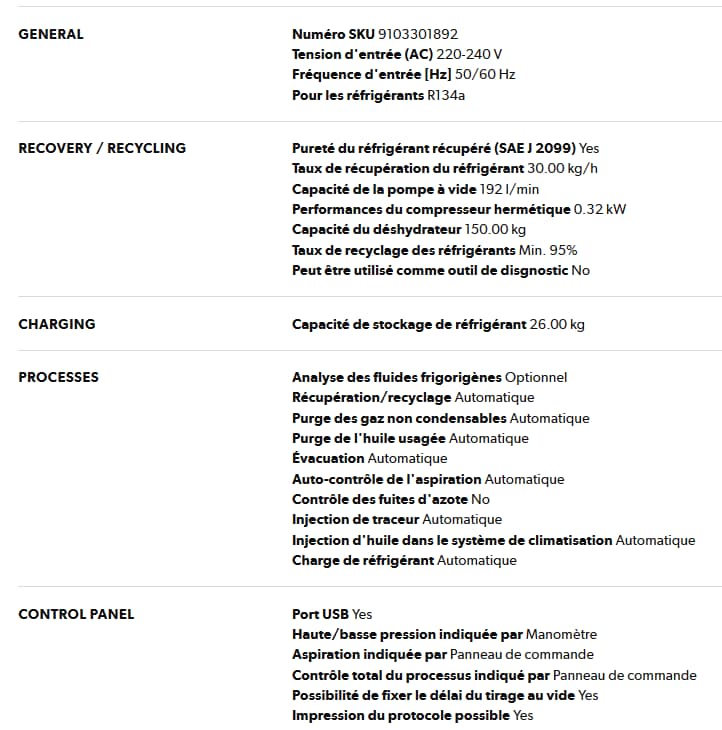

SPECIFICATIONS
Product PDF : WAECO – ASC 3300 G
