Description:

Double scissor lift for in-ground installation to make driving over the lift easier, without protruding components in the lift area
High level of operating comfort due to continuously adjustable support plate length, no subsequent pushing of the vehicle required
Foundation inserts for extending the support plates when the lift is retracted prevent time-consuming raising during set-up and time-consuming intermediate stops during retraction
Support plates and pull-outs granule-coated for optimum protection against vehicle slippage
Double the safety due to two redundant cylinders on each side of the scissors
No compressed air required to operate the lifting platform
Full lifting power even from the bottommost lifting height range thanks to innovative cylinder lift-out support
Quiet setting in the lowest position due to lowering delay installed as standard
Soft start from the lowest position for gentle attachment to the vehicle
High level of lateral stability due to generously sized scissor arms
No mechanical connection between the scissors, so no trip edges
Simple EMERGENCY OFF function in the event of power failure
Varnished with high-quality powder coating:gentian blue, RAL 5010 (support plates)
anthracite grey, RAL 7016 (scissors, ground frame, operation desk)
Base frame with dual-layer powdered varnish boosts corrosion-resistance
Fully automatic synchronisation of support plates and high level of safety due to cylinder distance measurement system (“linear absolute measurement system”)
Crushing / shearing protection due to CE stop

Standard Delivery:

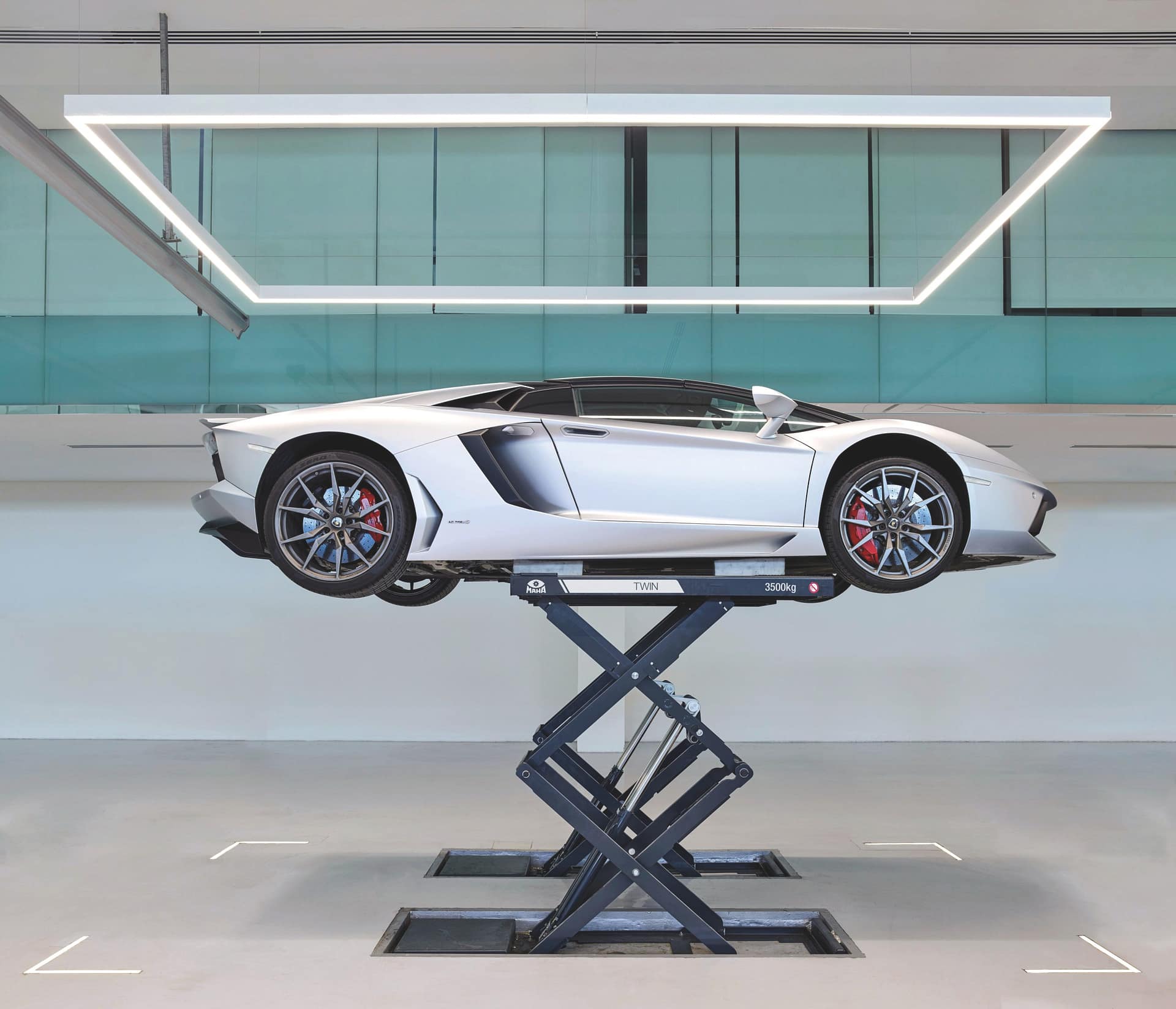

Double scissor lift, type: TWIN F IV 3.5 U
Foundation inserts
Hot dip-galvanised shim plates for ground frame
Operation desk, upright, with controller and hydraulic unit
Lockable main switch Hydraulic hoses for 2 m distance between platform and unit
Operating manual and test log
EC CE conformity instructions
Transport packaging
