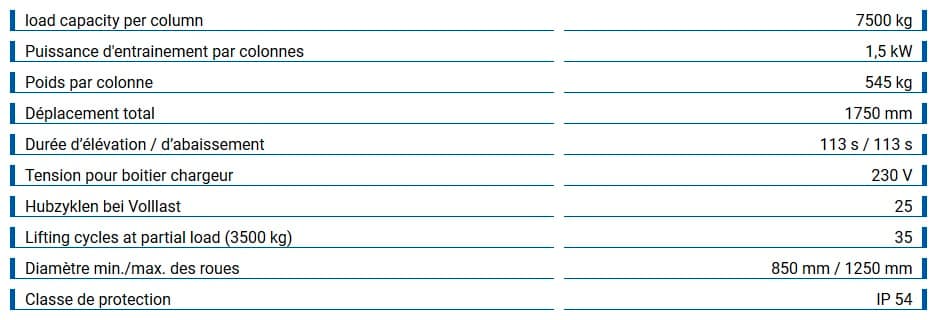

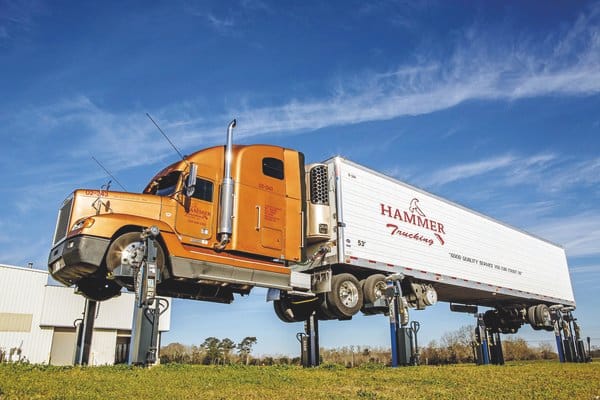

RGA

COLUMNLIFT | Mobile Wheel Engaging Column Lifts up to 7500 kg load capacity per column

---

---

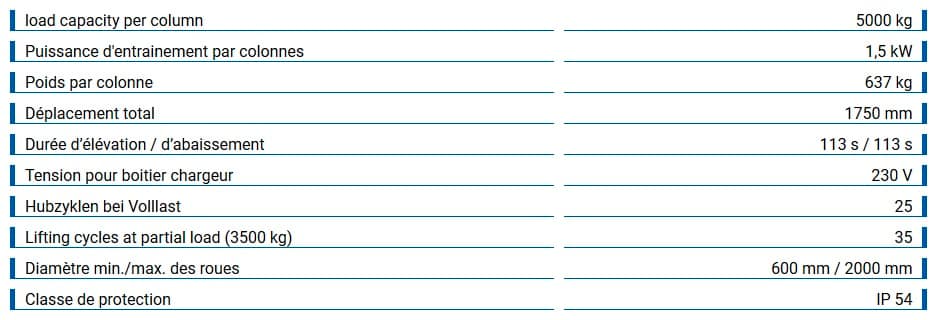

RGA T

COLUMNLIFT | Mobile Column Lift up to 5000 kg load capacity per column

---

Description:

Very smooth running due to electro-mechanical drive system
High efficiency thanks to smooth-running, low-maintenance ball screw
5-year warrantee for entire spindle drive
Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
Lifting columns can be moved conveniently and easily thanks to hydraulic dolly at each column
Precision-height positioning without overrun thanks to high-quality worm gear motor
Extra-wide universal lifting carriages specially for vehicles with large tyre diameters up to 2 m
Overhead drive unit creates even more space in the work area
Workshop-robust and splash-proof control unit
Wear-free and easy-to-use membrane keypad
Flexible column positioning thanks to battery power supply (4 x 12 V), guaranteeing suitability across all vehicle categories
User convenience with panel operator controls on each individual column
High level of flexibility in use due to different operating modes
Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
Utmost safety thanks to mechanically independent locking device
Simple emergency lowering for power failure included as standard
System can easily be expanded with up to eight columns
Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
High-quality powder coating available in a variety of colours

---

Standard Delivery:

4 individual mobile columns
4 hydraulic dollies

---

---

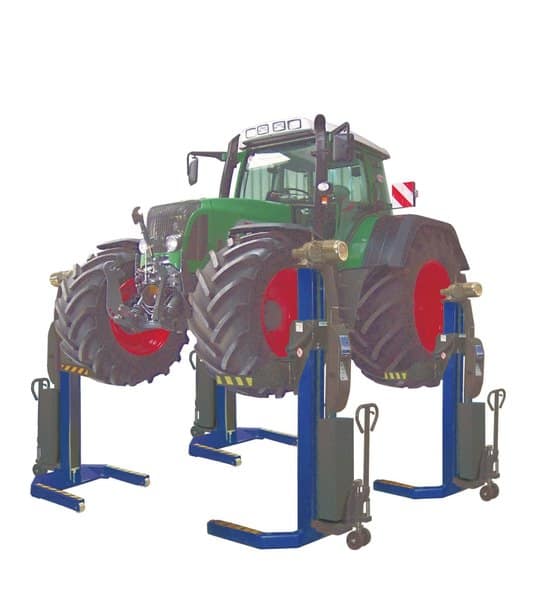

RGA TS

COLUMNLIFT | Mobile Column Lift up to 7500 kg load capacity per column

---

Description:

Very smooth running due to electro-mechanical drive system
High efficiency thanks to smooth-running, low-maintenance ball screw
5-year warrantee for entire spindle drive
Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
Lifting columns can be moved conveniently and easily thanks to hydraulic dolly at each column
Precision-height positioning without overrun thanks to high-quality worm gear motor
Specially for holding tractors with two crosspieces with adapter kit (can only be used for tractors with corresponding C-rail)
Overhead drive unit creates even more space in the work area
Workshop-robust and splash-proof control unit
Wear-free and easy-to-use membrane keypad
Flexible column positioning thanks to battery power supply (4 x 12 V), guaranteeing suitability across all vehicle categories
User convenience with panel operator controls on each individual column
High level of flexibility in use due to different operating modes
Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
Utmost safety thanks to mechanically independent locking device
Simple emergency lowering for power failure included as standard
System can easily be expanded with up to eight columns
Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
High-quality powder coating available in a variety of colours

---

Standard Delivery:

2 individual mobile columns
2 hydraulic dollies
2 crosspieces with adapter kit

---

---

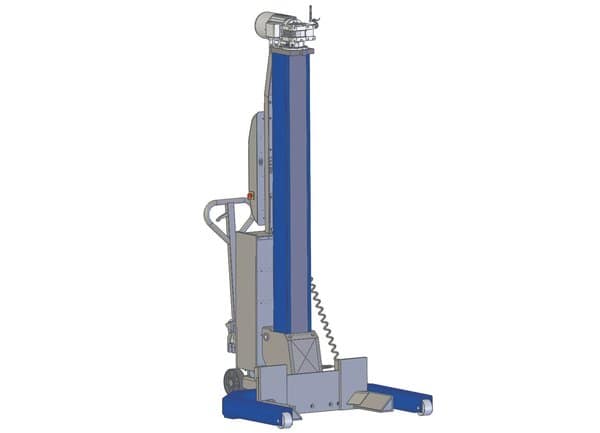

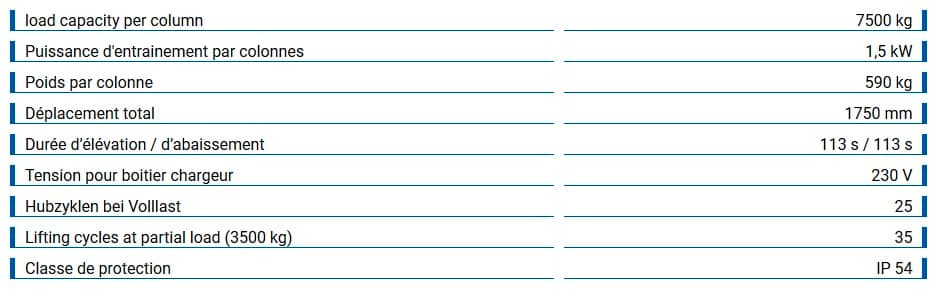

RGA-GPGU

COLUMNLIFT | Mobile Column Lift up to 7500 kg load capacity per column

---

Descriptions:

Very smooth running due to electro-mechanical drive system
High efficiency thanks to smooth-running, low-maintenance ball screw
5-year warrantee for entire spindle drive
Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
Lifting columns can be moved conveniently and easily thanks to hydraulic dolly at each column
Precision-height positioning without overrun thanks to high-quality worm gear motor
Universal lifting carriages with movable holder prongs specially for forklift trucks and special-purpose vehicles
Overhead drive unit creates even more space in the work area
Workshop-robust and splash-proof control unit
Wear-free and easy-to-use membrane keypad
Flexible column positioning thanks to battery power supply (4 x 12 V), guaranteeing suitability across all vehicle categories
User convenience with panel operator controls on each individual column
High level of flexibility in use due to different operating modes
Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
Utmost safety thanks to mechanically independent locking device
Simple emergency lowering for power failure included as standard
System can easily be expanded with up to eight columns
Universal holder can be exchanged for wheel support claws
Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
High-quality powder coating available in a variety of colours

---

Standard Delivery:

2 individual columns
2 hydraulic dollies

---

---

---
