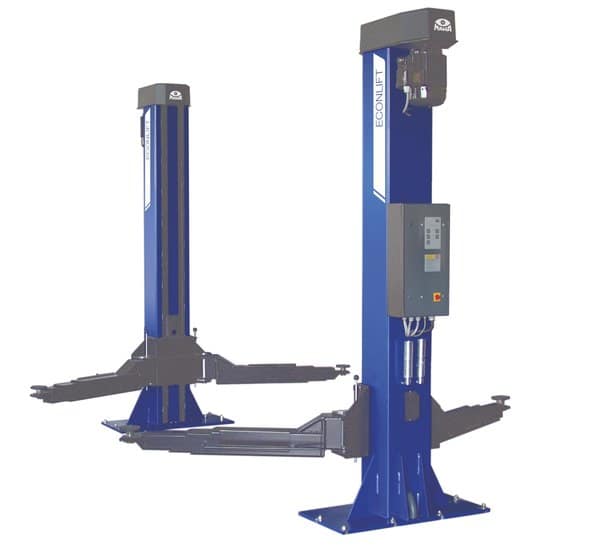

Maha – EconLift 6500

ECONLIFT | Two Post Lift with 6500 kg Lifting Capacity


Very smooth running due to electro-mechanical drive system
Wear-resistant plastic support and safety nut
Low wear through oil lubrication
Exceptional lifting column rigidity
Simple structure – no base frame or cross yoke
Ideal transporter intake through symmetrical lifting carriages
Wide range of lifting capabilities, from small cars, to transporters with long wheel bases, thanks to large extension range of the double telescopic support arms (3 parts)
Large lifting height exceeding 2 m
No overrun thanks to integrated braking system
Operating and control unit with 16-digit text display for operational and service messages, with robust membrane keypad and large operating keys
Wear-free and non-contact inductive sensor for lift height detection
Microprocessor control for monitoring synchronous running and all safety features
Service USB interface on the control board
Acoustic signal control as pinch protection (CE-stop)
230 volt power socket on control unit
High-quality powder coating:gentian blue, RAL 5010 as standard
additional colours available

Standard Delivery:

2 columns with control unit
Symmetrical support arms, double telescopic
Roller bearing support arm support, including positioning aid
Support disc plug-in system
4 support discs increases, 50 mm, galvanised
Spindle oil (0.25 l)
Operating manual and inspection log book
Transport packaging
