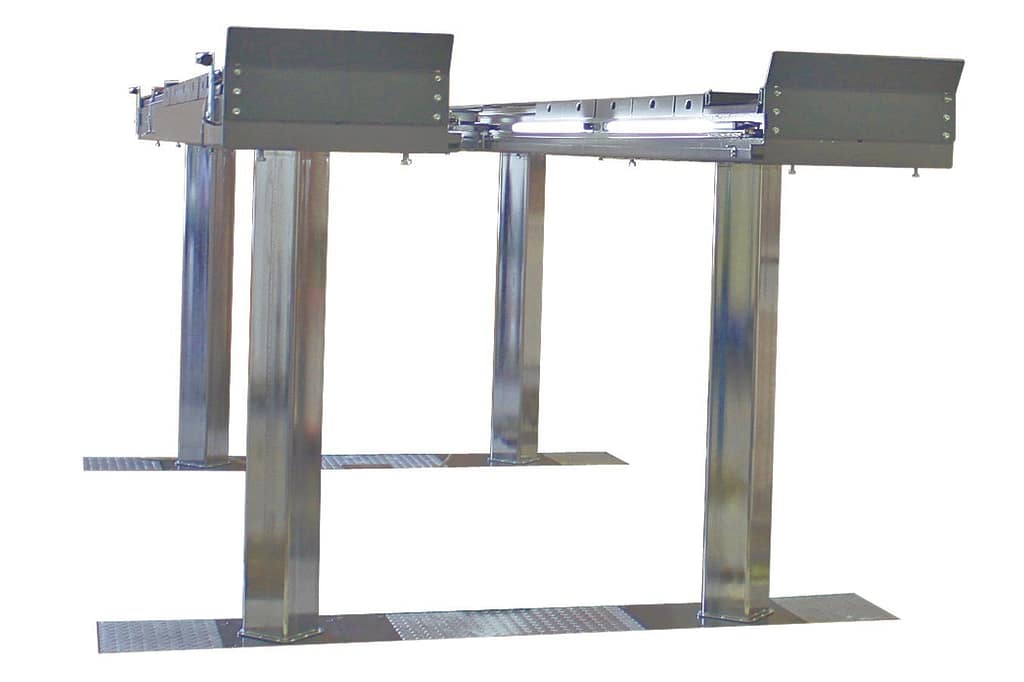

Maha – 4 cylinder lifts VS SQUARE II 6.5 MC
SQUARE | Four Post Inground Lift with 6500 kg load capacity
Description:
Driving platform:
Driving platform length 4400 mm ideal for cars and small transporters
Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and Displacement device with latch rail
Optionally prepared for wheel-free jack and level driving platforms with levelling plate sets
A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
Optional driving platform coating with granulate coating
Additional corrosion-resistant treatment in the seam region and body cavity-sealing increases the service life
Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
All cables are protected inside the SQUARE post
Optional, no-dazzle rotatable LED lighting
Various assembly variants for optimum use:Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
Runways and ground levelling pre-equipped for the use of an optional axle lift
Pinch point and shear point protection thanks to CE stop
SQUARE lift unit:
Outstanding rigidity and optimum safety thanks to torsion-resistant square post
Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
Electronic lift control with no-contact, wear-free limit switches and visual error display
Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
Protected internal hydraulic safety cylinder guarantee lengthy service life
Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
High lifting/lowering speeds are guaranteed (max. 38/38 s)
Lift system with synchronisation for electronic synchronism of the front and rear piston couple guarantees optimum precision of the front and rear piston couple
Battery-operated emergency lowering
Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system
Standard Delivery:
Driving platform 4400 mm powder-coated anthracite (RAL 7016)
Lift unit with hydraulic assembly
Ramps and drive-on plates
Rapid-action compressed-air coupling mounted on driving platform
Wiring and mounting material
Installation box/installation frame not included in delivery
Emergency DOWN cable for connection to switch box
Control unit with 4 x 10 m control cables (flexible oil cables)
Lockable master switch
Operating manual and test log
EC Declaration of Conformity CE
