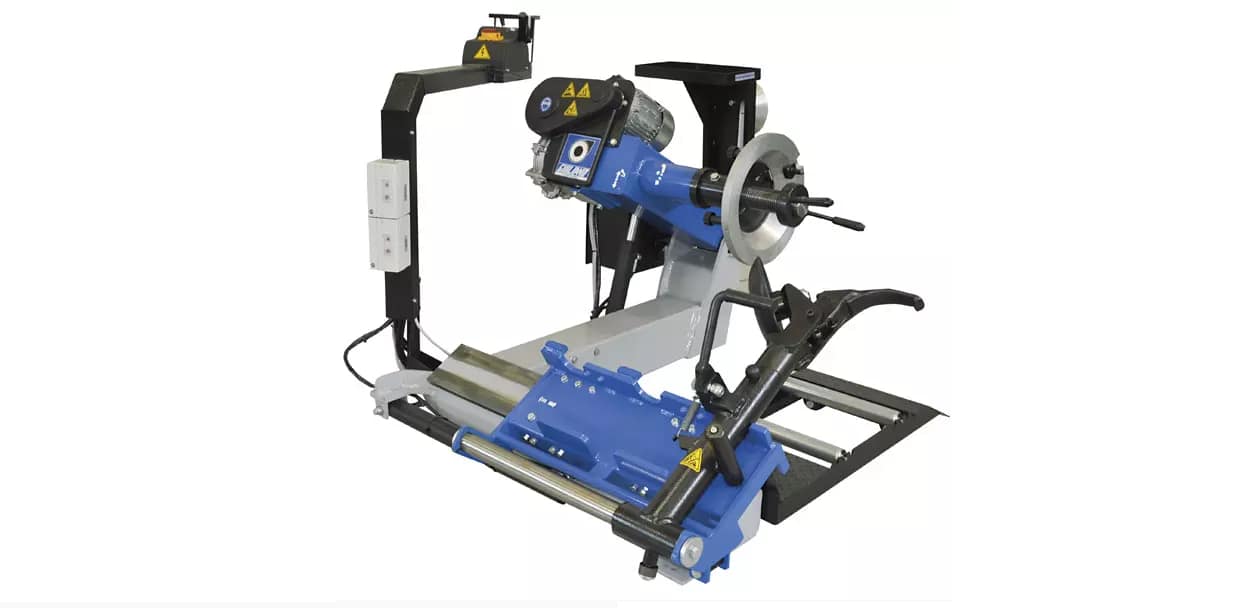

Giuliano – S554

Tyre changer suitable for truck and bus fleets with 14″ – 26″ rim (max. wheel diameter 1200 mm./47″; max. wheel width 780 mm./30″). Equipped with manual wheel clamping system by faceplate, cones and ring nut; also equipped with traditional double tool for mounting/removing tubeless and/or tube tyres.


Functions

Hydraulic movement of clamping chuck holding arm (up-down);
Hydraulic travel movement of operating arm carriage (left-right);
Operating arm manual tilting;
Double tool (disk + finger) manual rotation;
Wheel clamping by face plate, cones and ring nut;
Operating arm and clamping chuck arm facing each other;
All motions controlled by joysticks;
Safety switches and electric circuit breakers for both pump motor and chuck motor.




Manufacturer’s website : Giuliano

Product website : Giuliano – S554

Product PDF : Giuliano – S554
