Ravaglioli – Tyre tread measuring TYRE PROFILER
TYRE PROFILER – TYRE TREAD MEASURING

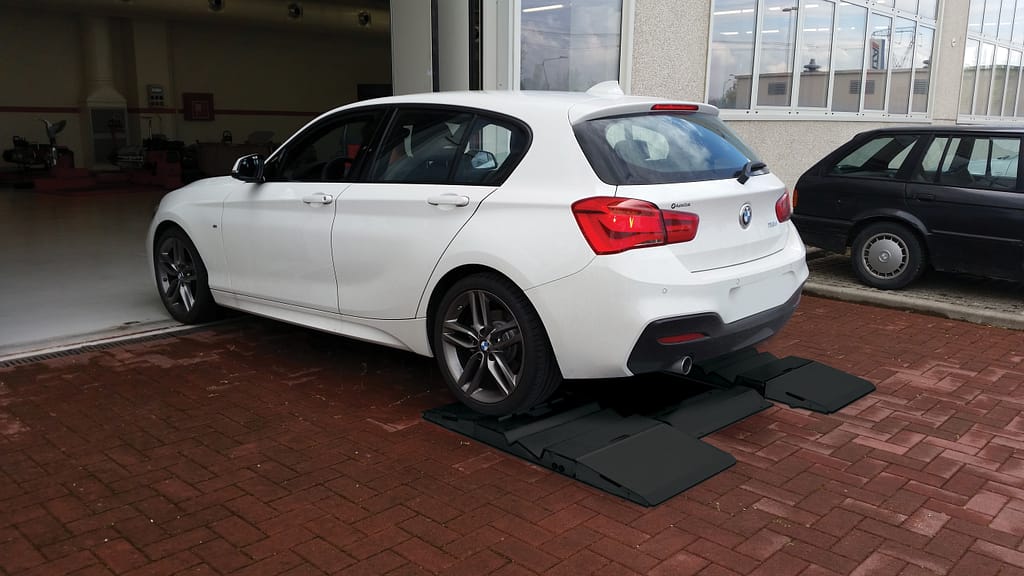

read depth is measured as the vehicle passes over the Profiler at a max. speed of 8 km/h
(5 mph).
Measuring system: Stereo cameras plus laser blade.
Measurement results are available within seconds.
Designed with no moving parts to withstanding workshop environment.
For axle loads up to 4 tons.
Profiler is an important equipment for the reception bay, to improve the process and save time.
Tyre tread on all wheels is measured very fast: before the driver exits the vehicle, all results are available.
No need for compressed air.
No need for internet connection.
Suitable for installation indoor or outdoor (roof covered).![](https://equindus.lu/wp-content/uploads/2020/04/image-détecteur-dusure-1024x576.jpg)
TEST RESULT
Test result. Graphic representation of tyre wear. Indication of maximum and minimum tread depth.![](https://equindus.lu/wp-content/uploads/2020/04/test-result.jpg)
ZOOM FUNCTION
Zoom function. It allows to select each tyre for a more detailed analysis.![](https://equindus.lu/wp-content/uploads/2020/04/fonction-zoom.jpg)
