Garmat – Preparation Area
Preparation Area

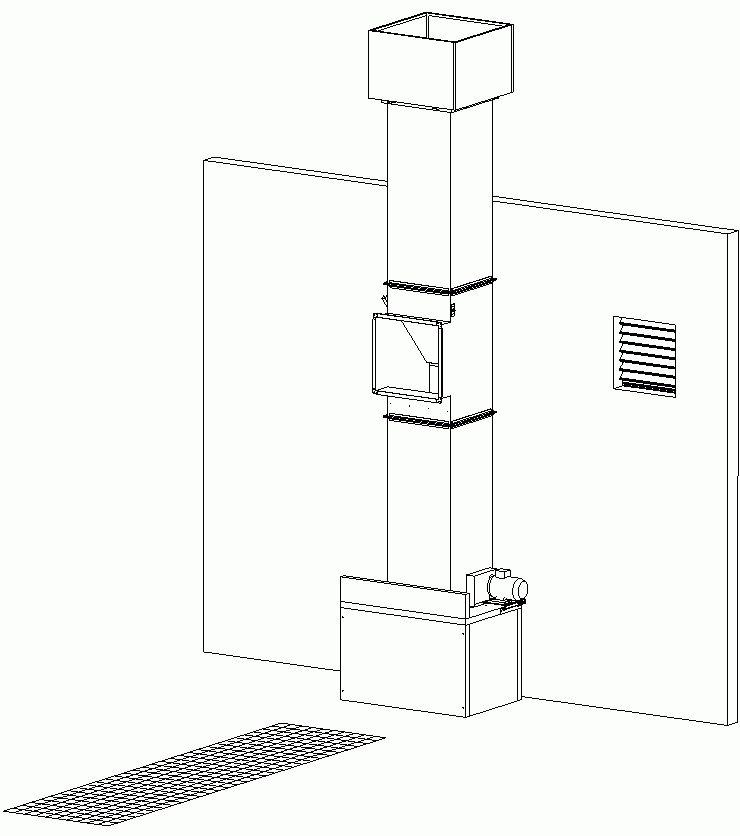

VBZ310
Exhaust Package :
-Fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
Channel:
(1) round channel : 710 mm ;
(2) square channel 600/600 mm without recovery valve ;
(3) square channel 600/600 mm with recovery valve + self-closing rain cap up to a height of 6 m from level 0.
– Self-closing air inlet grille: 600 mm x 600 mm
– Operation: switch, thermal protection
Extraction :
by means of paint filters (4 m² paint stop) under the grating with dimensions 4,000 mm x 800 mm (pit 900 mm)
Grid type: E 50/2, 390 kg/impeller area
Option :
– Larger grid area: 5 x 1.6 m = 8 m².
– Larger flow rate: 15,000 m³/h, 3 kW motor
– W-filter
– Heavier grilles: E 50/3, 590 kg/wheel area

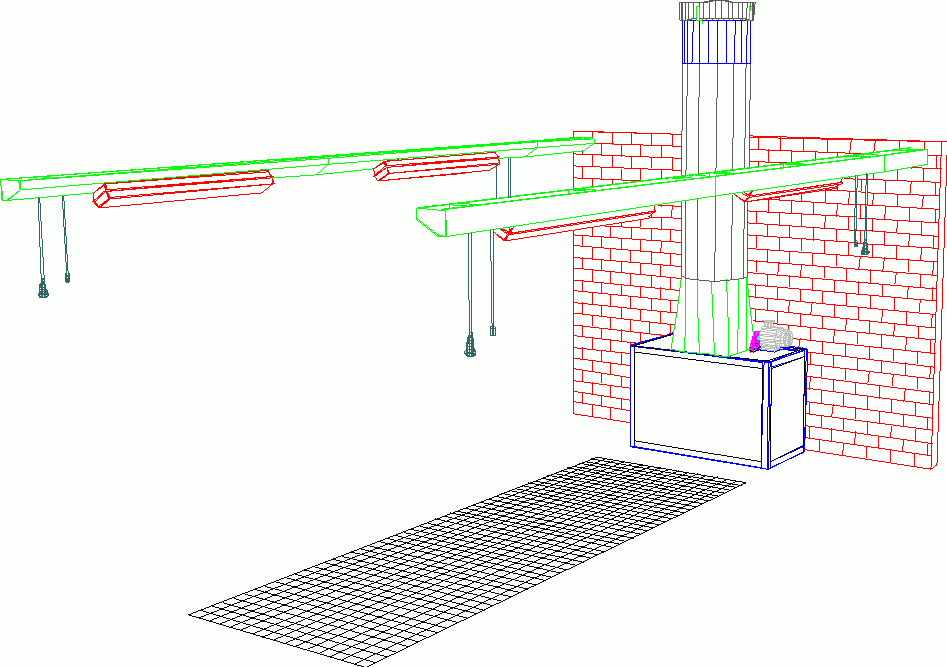

VBZ311
Exhaust Package :
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) round channel Æ 710 mm/
(2) square channel 600/600 mm without check valve/ (3) square channel 600/600 mm without check valve/ (4) square channel 600/600 mm without check valve/ (5) square channel 600/600 mm without check valve/ (6) square channel 600/600 mm without check valve/ (7) square channel 600/600 mm without check valve/ (8) square channel 600/600 mm without check valve/ (9) square channel 600/600 mm without check valve/ (10) square channel 600/600 mm without check valve/ (11) square channel 600/600 mm without check valve/ (12) square channel 600/600 mm without check valve/ (13) square channel 600/600 mm without check valve/ (14) square channel 600/600 mm without check valve/
(3) square channel 600/600 mm with rain flap + self-closing rain cap up to a height of 6 m from level 0.
– Self-closing air inlet grille: 600 mm x 600 mm
– Control: switch, thermal protection VBZ311
Extraction by means of paint filters (4 m² paint stop) under the grating with dimensions 4,000 mm x 800 mm (pit 900 mm)
Grille type E 50/2, 390 kg/impeller area
Ring light 7 x 4 m with 6 softboxes, each with 2 x 58 Watt = 696 Watt.
Optional extra:
Both energy boxes and other energy supplies
– Larger grid area: 5 x 1.6 m = 8 m².
– Larger flow rate: 15,000 m³/h, 3 kW
– W-Filter
– Heavier grilles: E 50/3, 590 kg/wheel area

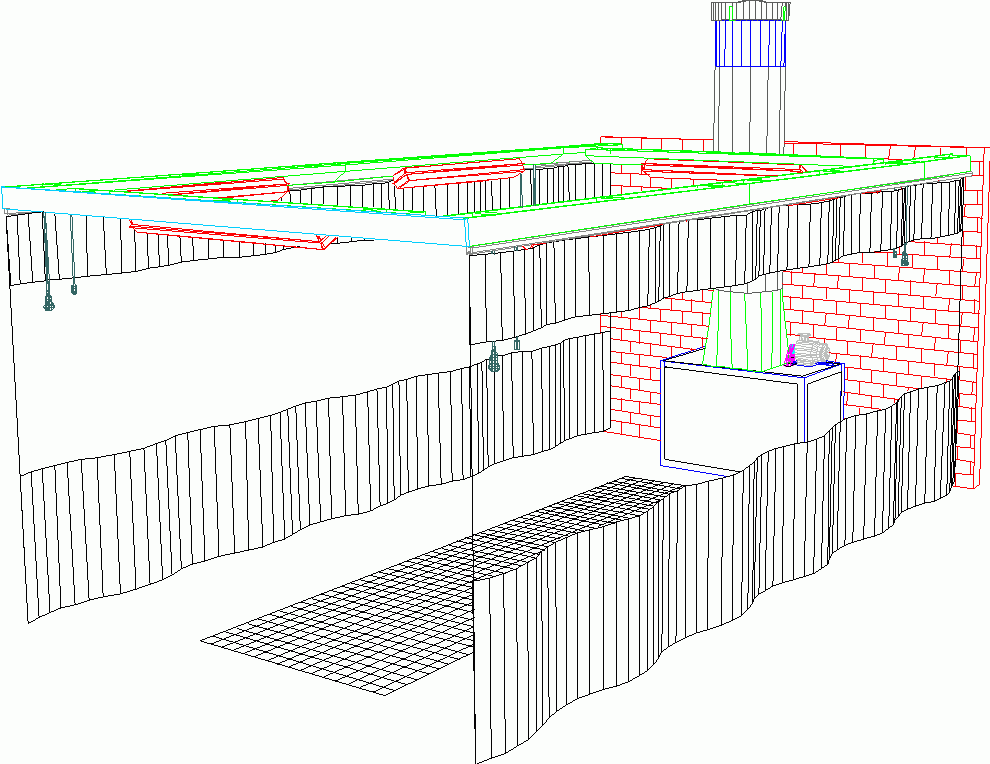

VBZ312
Exhaust Package :
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) round channel Æ 710 mm/
(2) square channel 600/600 mm without check valve/ (3) square channel 600/600 mm without check valve/ (4) square channel 600/600 mm without check valve/ (5) square channel 600/600 mm without check valve/ (6) square channel 600/600 mm without check valve/ (7) square channel 600/600 mm without check valve/ (8) square channel 600/600 mm without check valve/ (9) square channel 600/600 mm without check valve/ (10) square channel 600/600 mm without check valve/ (11) square channel 600/600 mm without check valve/ (12) square channel 600/600 mm without check valve/ (13) square channel 600/600 mm without check valve/ (14) square channel 600/600 mm without check valve/
(3) square channel 600/600 mm with rain flap + self-closing rain cap up to a height of 6 m from level 0.
– Self-closing air inlet grille: 600 mm x 600 mm
– Control: switch, thermal protection VBZ312
Extraction by means of paint filters (4 m² paint stop) under the grating with dimensions 4,000 mm x 800 mm (pit 900 mm)
Grille type E 50/2, 390 kg/impeller area
Ring light 7 x 4 m with 6 softboxes, each with 2 x 58 Watt = 696 Watt.
Curtains :
2 pieces with rails:
dimensions: 6,800 mm x 3,000 mm
Option :
– The two energy boxes and the other energy supplies
– Larger grid area: 5 x 1.6 m = 8 m².
– Larger flow rate: 15,000 m³/h, 3 kW
– W- Filter
– Heavier grilles: E 50/3, 590 kg/wheel area
– Curtain in front
VBZ313
Exhaust Package :
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
600 x 600 mm with or without rain flap + self-closing rain cap up to a height of 6 m from level 0
– How it works :
switch, pilot light, recycling VBZ313
Extraction :
by means of paint filters (8 m² paint stop) under the grating with dimensions 5.000 mm x 1.600 mm (pit 900 mm)
Beams:
1 piece 3800 mm x 500 mm
Curtains:
2 pieces with rails: dimensions: 6,800 mm x 3,000 mm
Lighting :
2 x 4 light boxes, each 4 x 30 Watt = 960 Watt.
Entry plenum:
– fan: 2 x 3.500 m³/h
– motor: 2 x 0.75 kW
– dimensions: 3,000 mm x 2,000 mm x 500 mm
– filters: 3 ceiling filters PA 560G
Back wall:
2 door panels for storage
Some preparation areas without earthwork

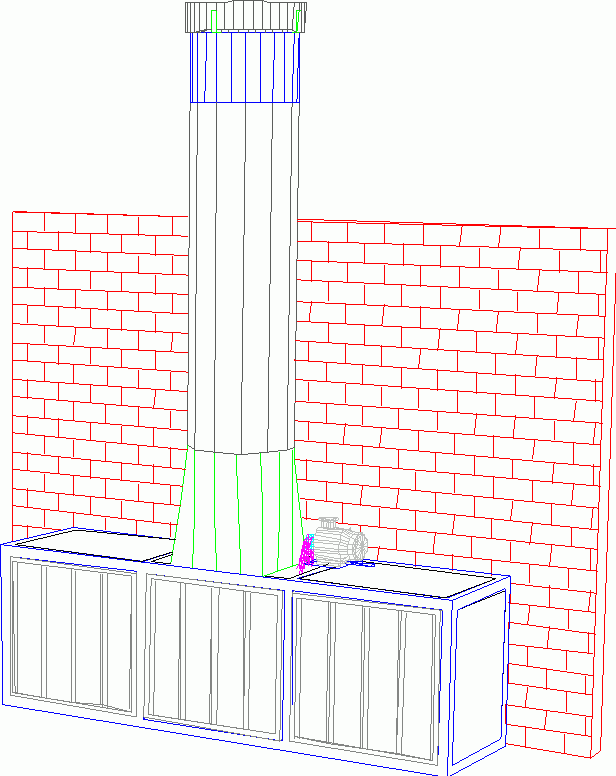

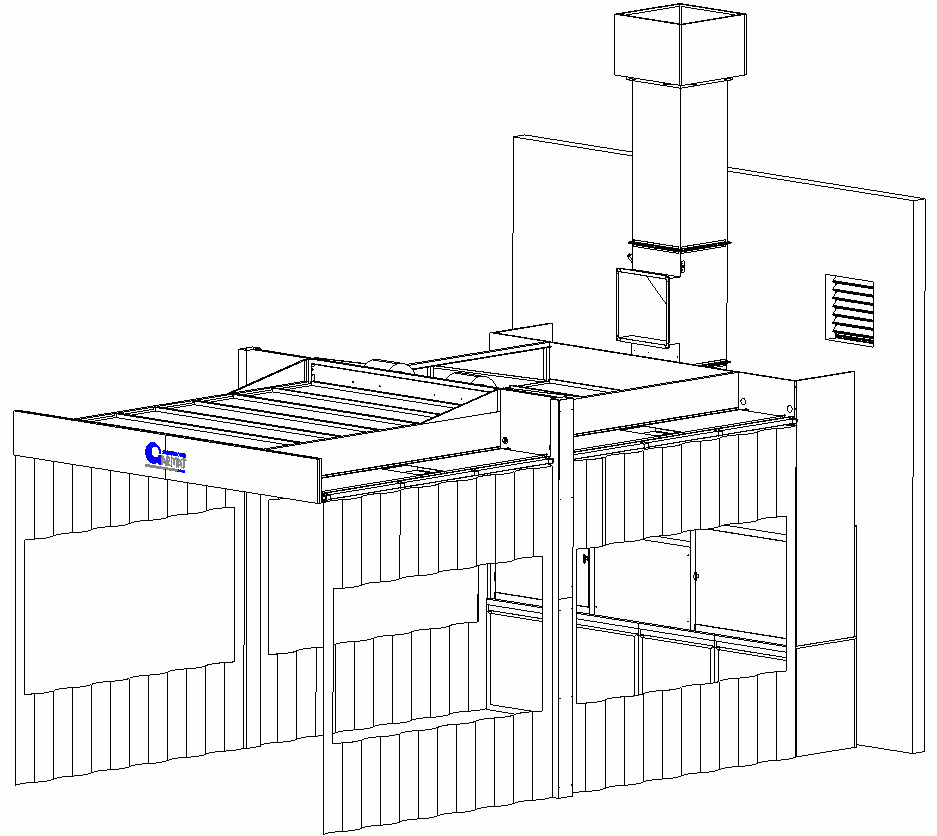

VBZ410
Exhaust Package :
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) round channel Æ 710 mm/
(2) square channel 600/600 mm without check valve/ (3) square channel 600/600 mm without check valve/ (4) square channel 600/600 mm without check valve/ (5) square channel 600/600 mm without check valve/ (6) square channel 600/600 mm without check valve/ (7) square channel 600/600 mm without check valve/ (8) square channel 600/600 mm without check valve/ (9) square channel 600/600 mm without check valve/ (10) square channel 600/600 mm without check valve/ (11) square channel 600/600 mm without check valve/ (12) square channel 600/600 mm without check valve/ (13) square channel 600/600 mm without check valve/ (14) square channel 600/600 mm without check valve/
(3) square channel 600/600 mm with rain flap + self-closing rain cap up to a height of 6 m from level 0.
– Self-closing air inlet grille: 600 mm x 600 mm
– Control: switch, thermal protection VBZ410
Extraction :
by means of paint filters (3.8 m² paint stop) in the filter box with dimensions 3.800 mm x 1.000 mm x 800 mm
Option:
– Larger grid area: 5 x 1.6 m = 8 m².
– Larger throughput: 15,000 m³/h, 3 kW motor
– W-filter

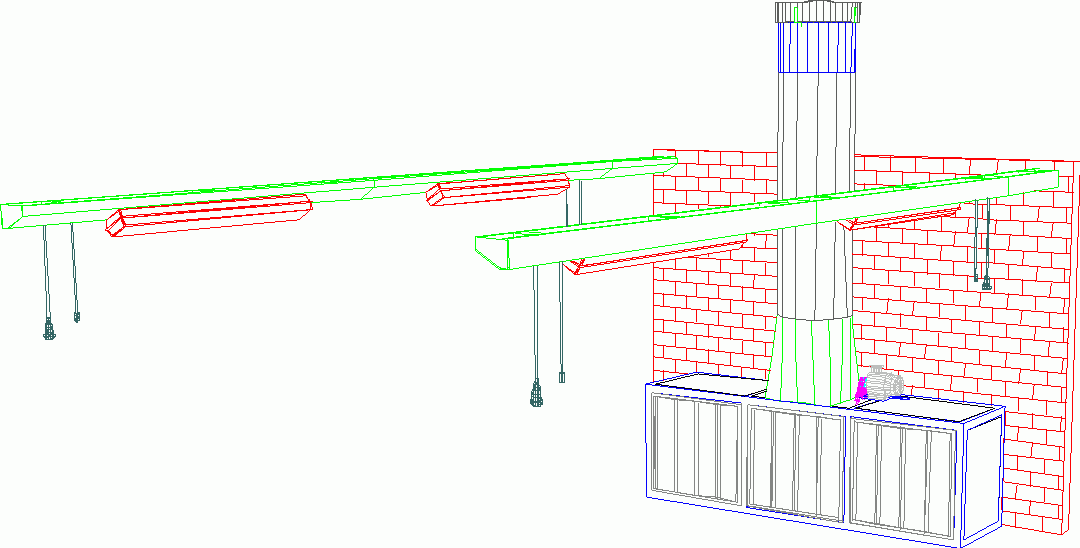

VBZ411
Exhaust group:
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) round channel Æ 710 mm/
(2) square channel 600/600 mm without check valve/ (3) square channel 600/600 mm without check valve/ (4) square channel 600/600 mm without check valve/ (5) square channel 600/600 mm without check valve/ (6) square channel 600/600 mm without check valve/ (7) square channel 600/600 mm without check valve/ (8) square channel 600/600 mm without check valve/ (9) square channel 600/600 mm without check valve/ (10) square channel 600/600 mm without check valve/ (11) square channel 600/600 mm without check valve/ (12) square channel 600/600 mm without check valve/ (13) square channel 600/600 mm without check valve/ (14) square channel 600/600 mm without check valve/
(3) square channel 600/600 mm with rain flap + self-closing rain cap up to a height of 6 m from level 0.
– Self-closing air inlet grille: 600 mm x 600 mm
– Control: switch, thermal protection VBZ411
Extraction :
by means of paint filters (3.8 m² paint stop) in the filter box with dimensions 3.800 mm x 1.000 mm x 800 mm
Ring light 7 x 4 m with 6 Softboxes, each 2 x 58 Watt = 696 Watt
Option:
– The two power boxes and the other energy supplies
– Higher throughput: 15,000 m³/h, 3 kW
– W-Filter

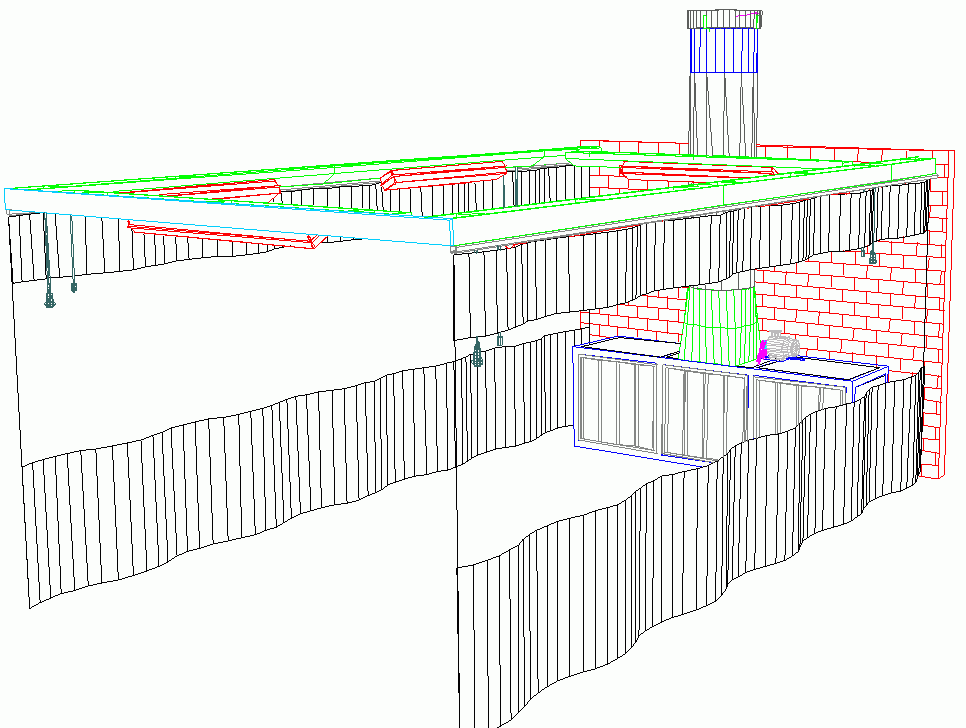

VBZ412
Exhaust group:
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) round duct Æ 710 mm/
(2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/ (2) 600/600 mm square duct without check valve/
(3) 600/600 mm square duct with recovery flap + self-closing rain cap up to a height of 6 m from level 0
– Self-closing air inlet grille: 600 mm x 600 mm
– Control: switch, thermal protection VBZ412
Extraction :
by means of paint filters (3.8 m² paint stop) in the filter box with dimensions 3.800 mm x 1.000 mm x 800 mm
Lights:
ring light 7 x 4 m with 6 softboxes, each 2 x 58 Watt = 696 Watt.
Curtains:
2 pieces with rails: dimensions: 6,800 mm x 3,000 mm
Option:
– The two power boxes and the other energy supplies
– Higher throughput: 15,000 m³/h, 3 kW
– W-Filter
– Curtain in front
VBZ413
Exhaust Package :
– fan: 12,000 m³/h
– motor: 2.2 kW
– dimensions: 1,500 x 1,000 mm
– Channel:
600 x 600 mm with or without recovery valve
– How it works :
switch, pilot light, recycling VBZ413
Extraction:
by means of paint filters (3.8 m² paint stop) in the filter box with dimensions 3,000 mm x 1,000 mm x 800 mm
Beams:
1 piece 3 800 mm x 500 mm
Curtains:
2 pieces with rails: dimensions: 6,800 mm x 3,000 mm
Lighting :
2 x 4 light boxes, each 4 x 30 Watt = 960 Watt
Inflatable Plenum :
– fan: 2 x 3.500 m³/h
– motor: 2 x 0.75 kW
– dimensions: 3,000 mm x 2,000 mm x 500 m
– filters: 3 ceiling filters PA 560G
Back wall:
2 door panels for storage
Double preparation area with earthworks

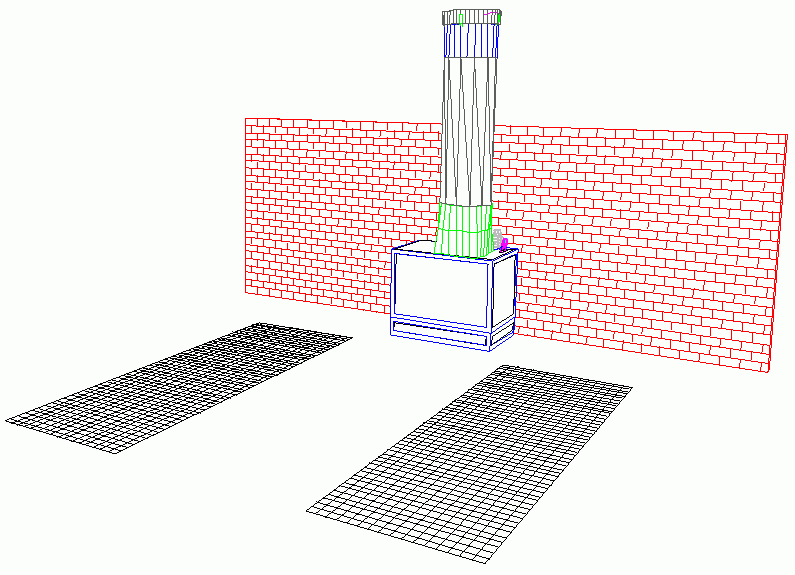

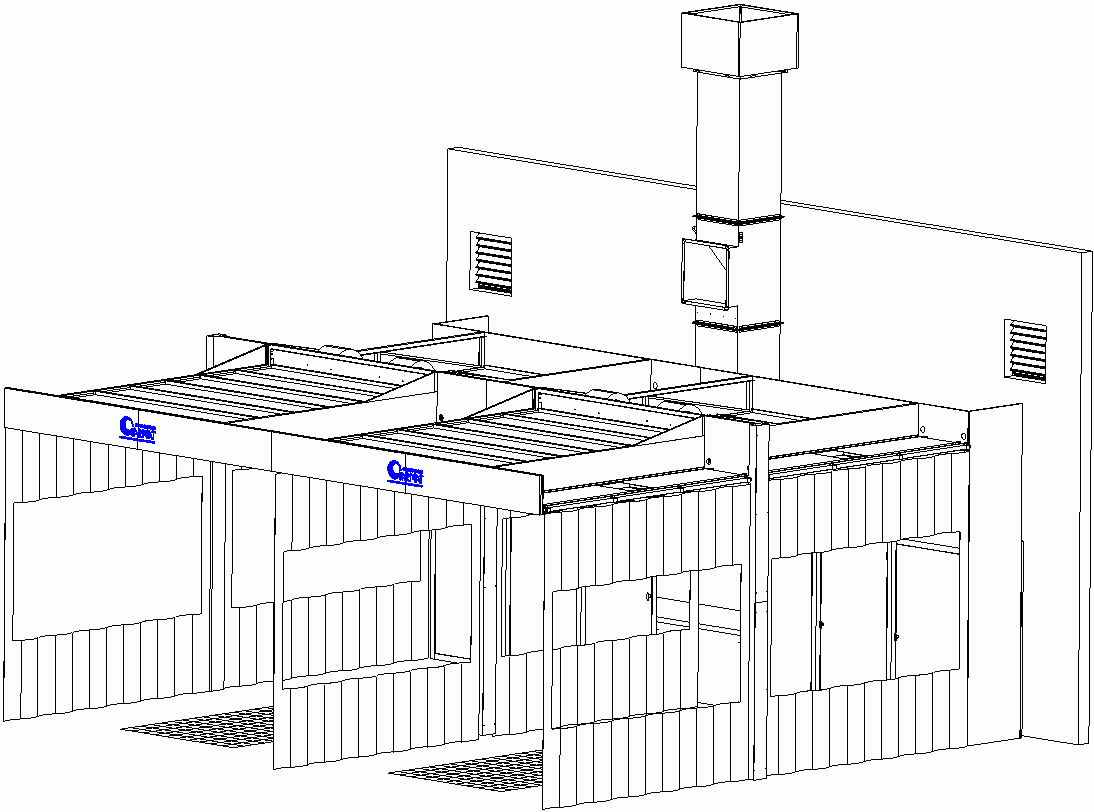

VBZ510
Exhaust group:
– fan: 18,000 m³/h
– motor: 4 kW- dimensions: 1200 x 800 x 800 mm
– Channel:
(1) Æ 710 mm/
(2) Channel 600/600 mm with collecting flap + self-closing rain cap up to a height of 6 m from level 0
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
-Functioning :
switch, thermal protection VBZ510
Extraction:
by means of paint filters (8 m² paint stop) under the grating with dimensions 2 x (4.000 mm x 1.000 mm) (pit 900 mm)
Option :
– Larger grid area: 2 x (5 x 1.6 m) = 16 m²
– Higher throughput: 22,000 m³/h
VBZ511
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) Æ 710 mm/
(2) Channel 600/600 mm with collecting flap + self-closing rain cap up to a height of 6 m from level 0
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
– How it works :
switch, thermal protection
Extraction :
by means of paint filters (8 m² paint stop) under the grating with dimensions 2 x (4.000 mm x 1.000 mm) (pit 900 mm)
Beams 2 single :
6,800 mm long with lighting/1 double: 6,000 mm long with lighting/2 single: 3,800 mm long with lighting
Lighting :
12 light boxes, each with 2 x 58 Watt = 1.392 Watt.

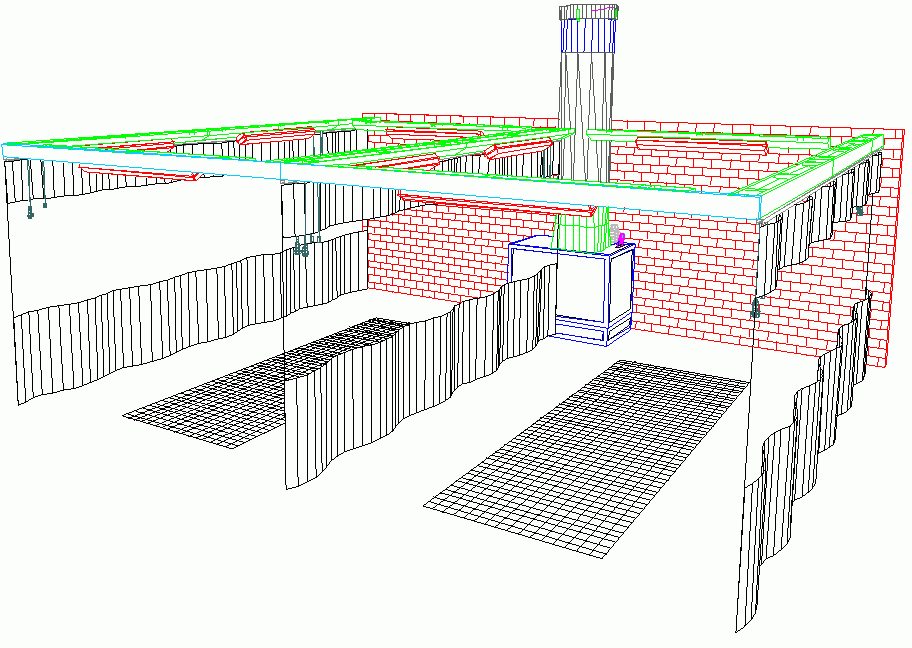

VBZ512
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
(1) Æ 710 mm/
(2) Channel 600/600 mm with collecting flap + self-closing rain cap up to a height of 6 m from level 0
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
– How it works :
switch, thermal protection VBZ512
Extraction :
by means of paint filters (8 m² paint stop) under the slatted floor with dimensions 2 x (4000 mm x 1000 mm) (pit 900 mm)
Beams:
2 single 6,800 mm long with illumination (2 x 58 W) / 1 double 6,000 mm long with illumination (4 x 58 W) / 4 pcs. 3,800 mm long with illumination (2 x 58 W)
Curtains 2 pieces with rails :
dimensions: 6.800 mm x 3.000 mm / 1 piece with rails: dimensions: 6.000 mm x 3.000 mm
Lighting :
12 light boxes, each 2 x 58 Watt = 1392 Watt.
Optional:
– Power supply
– Larger grid area: 2 x (5 x 1.6 m) = 16 m².
– Larger flow rate: 22,000 m³/
VBZ513
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1200 x 800 x 800 mm
– Channel:
600 x 600 mm with recovery valve (or without recovery valve)
– With pneumatic shut-off valve
– How it works :
switch, pilot light, recycling VBZ513
Extraction :
by means of paint filters (16 m² paint stop) under the grating with dimensions 2 x (5.000 mm x 1.600 mm) (pit 900 mm)
Beams 2 pieces :
3 800 mm x 500 mm
3-piece curtains with rails :
dimensions: 6.000 mm x 3.000 mm
Lighting :
2 x (2 x 4 light boxes), each 4 x 30 Watt = 1920 Watt.
Entrance plenum:
– fan: 2 x (2 x 3.500 m³/h)
– motor: 2 x (2 x 0.75 kW)
– dimensions: 3,000 mm x 2,000 mm x 500 mm
– filters: 2 x (3 ceiling filters PA 560G)
Back wall:
6 door panels for storage
600/600 mm pipes with (or without) recovery valve and rain cap up to a height of 6 m from level 0
Double preparation area without earthwork

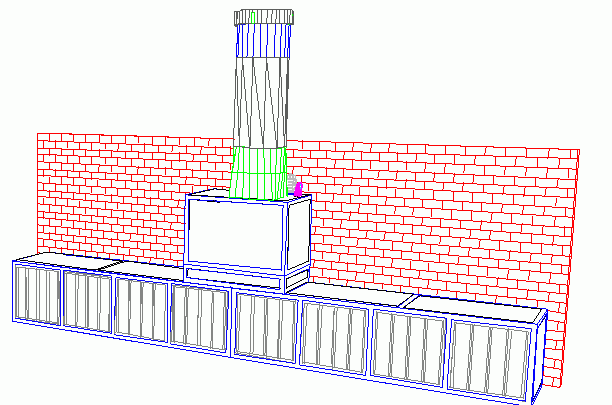

VBZ610
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1,500 x 1,000 x 1,000 mm
– Channel:
(1) Æ 710 mm/
(2) Duct 600/600 mm with drip flap + self-closing rain cap up to a height of 6 m from the level O
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
– How it works :
switch, thermal protection VBZ610
Extraction :
by means of paint filters (7.6 m² paint stop) in the filter box with dimensions 2 x (3.800 mm x 1.000 mm x 1.000 mm)
Option:
– Larger grid area: 2 x (5 x 1.6 m) = 16 m²
– Higher throughput: 22,000 m³/h

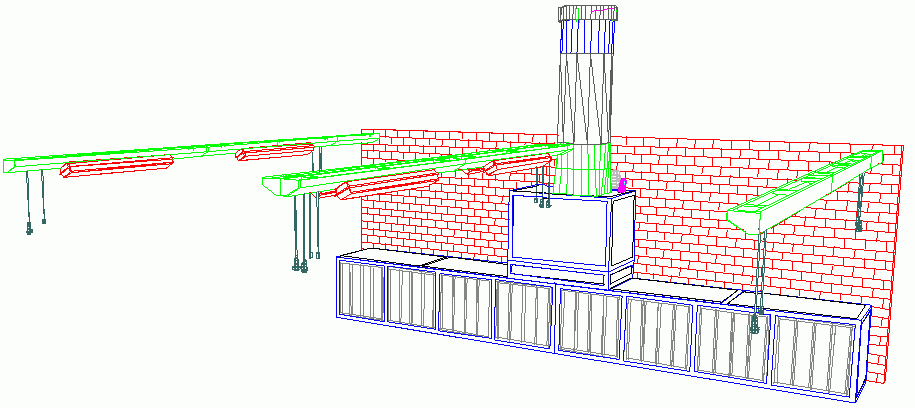

VBZ611
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1,500 x 1,000 x 1,000 mm
– Channel:
(1) Æ 710 mm/
(2) Duct 600/600 mm with drip flap + self-closing rain cap up to a height of 6 m from O
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
– How it works :
switch, thermal protection VBZ611
Extraction :
by means of paint filters (7.6 m² paint stop) in the filter box with dimensions 2 x (3.800 mm x 1.000 mm x 1.000 mm)
Beams:
2 single: 6,800 mm long with lighting (2 x 58 W)/1 double: 6,000 mm long with lighting (4 x 58 W)
Lighting :
8 Softboxes, each with 2 x 58 Watt = 928 Watt.
Optional:
– Power supply :
– 2×4 2-phase sockets + grounding
– 2×4 compressed air connections :
– Orion passage Æ = 6.2 mm
– Swivel range Æ = 8.0 mm
– Larger grid area: 2 x (5 x 1.6 m) = 16 m².
– Higher throughput: 22,000 m³/h
VBZ612
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1,500 x 1,000 mm
– Channel:
(1) Æ 710 mm/
(2) Duct 600/600 mm with drip flap + self-closing rain cap up to a height of 6 m from the level O
– Self-closing air inlet grille: 600 mm x 600 mm
– With pneumatic shut-off valve
– How it works :
switch, thermal protection
Extraction :
by means of paint filters (7.6 m² paint stop) in the filter box with dimensions 2 x (3.800 mm x 1.000 mm x 1.000 mm)
Beams:
2 single: 6,800 mm long with lighting (2 x 58 W)/1 double: 6,000 mm long with lighting (4 x 58 W)/4 pcs 3,800 mm long with lighting (2 x 58 W)
Curtains:
2 pieces with rails: dimensions: 6.800 mm x 3.000 mm/1 piece with rails: dimensions: 6.000 mm x 3.000 mm
Lighting :
12 light boxes, each 2 x 58 Watt = 1392 Watt.
Option :
– Power supply :
– 2 x 4 sockets 2 phases + grounding
– 2 x 4 compressed air connections :
– Orion passage Æ = 6.2 mm
– Swivel range Æ = 8.0 mm

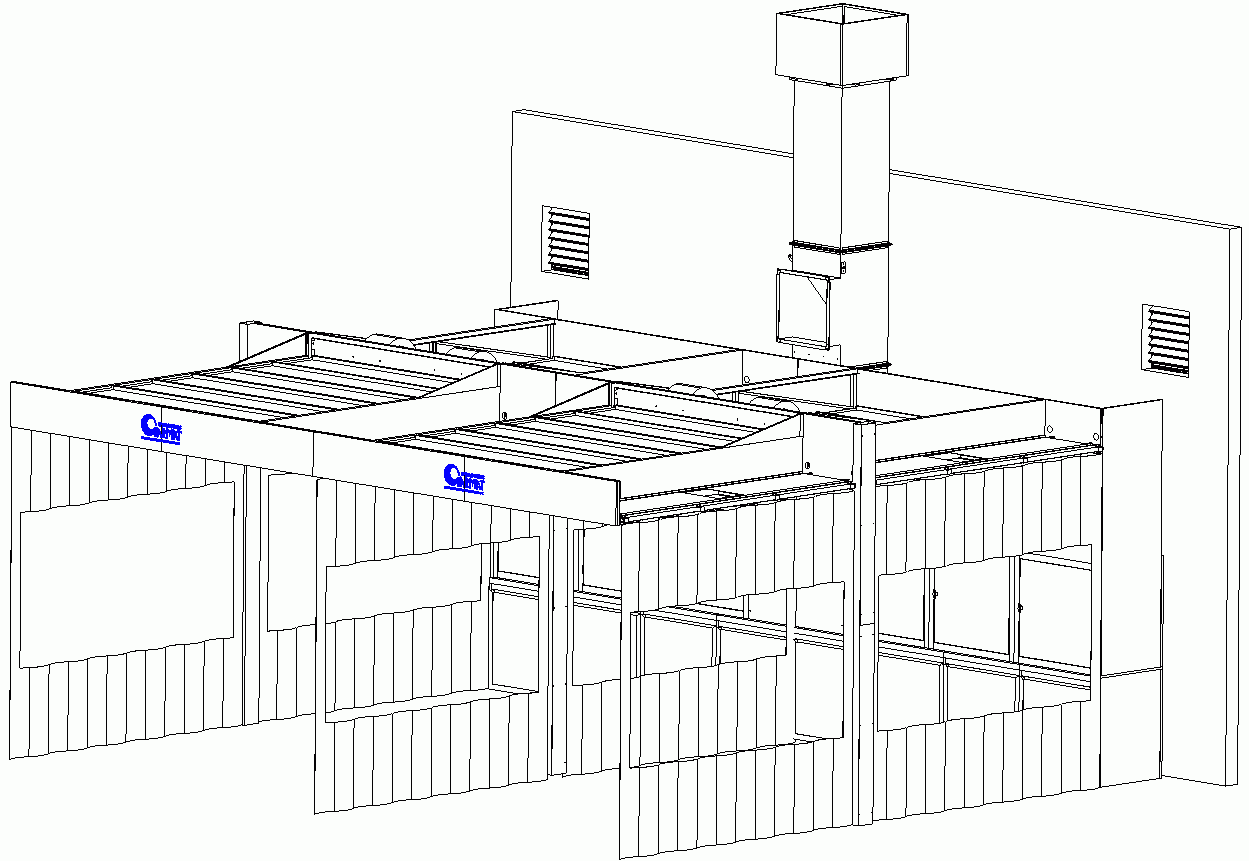

VBZ613
Exhaust Package :
– fan: 18,000 m³/h
– motor: 4 kW
– dimensions: 1,500 x 1,000 mm
Channel:
600 x 600 mm with recovery valve (or without recovery valve)
– With pneumatic shut-off valve
– How it works :
switch, pilot light, recycling
Extraction :
by means of paint filters (7.6 m² paint stop) in the filter box with dimensions 2 x (3.800 mm x 1.000 mm x 1.000 mm)
Beams:
2 pieces 3800 mm x 500 mm
Curtains:
3 pieces with rails: dimensions: 6.000 mm x 3.000 mm
Lighting :
2 x (2 x 4 light boxes), each 4 x 30 Watt = 1920 Watt.
Inlet plenum :
– fan: 2 x (2 x 3,500 m³/h)
– motor: 2 x (2 x 0.75 kW)
– dimensions: 3,000 mm x 2,000 mm x 500 mm
– filters: 2 x (3 ceiling filters PA 560G)
Rear wall 6 door panels for storage
600/600 mm pipework with rain cap up to a height of 6 m from level 0 (or without valve) and rain cap
Manufacturer’s website : Garmat
Product website : Garmat-Preparation-Area
