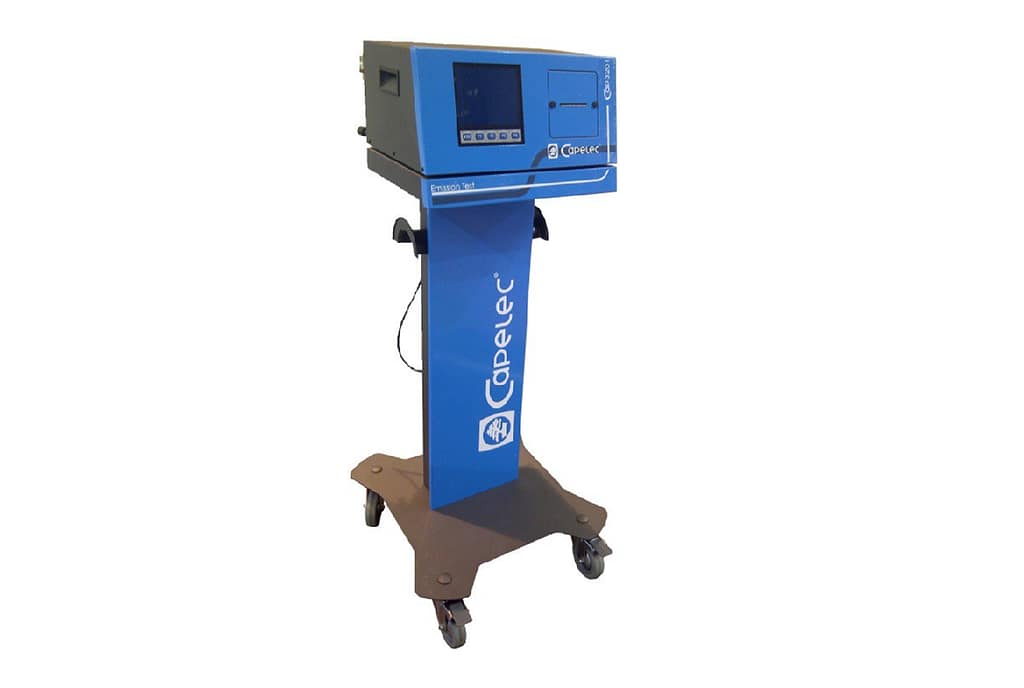

Emission controler CAP3201 NG

---

Exhaust gas emissions analyser from heat engines (cars, mopeds, moto, trucks, campers….)

Multi-fuel :

– Diesel | Smokemeter
– Petrol | Gas analyzer
– Diesel-Petrol | Combined

Gas Analyzer & Smokemeter
– LCD Screen
– Azerty/Qwerty keyboard
– Built-in thermal printer
– Inductive RPM sensor
– Piezo sensor
– Oil temperature probe
– Supply 115-230V 1,5A | 47Hz to 63Hz
– Data security: OTC Lan | GIEG Lan
– Mobile trolley

---

GAZ ANALYZER

. For thermal Gazoline engine
. 4-gas analyzer| CO, CO², HC, O²
. Preheating time less than 5mn at 20°C
. Condensation automatic extraction
. Automatic auto 0 every 30mn, priority to measurement

– Complying with standard : OIML R99 Classe 0, ISO 3930 and BAR97
Measuring the concentrations of : Hydrocarbons (HC), Carbon monoxide (CO), and Carbon dioxide (CO2)
– Treatment of O2 Sensor input
– Treatment of Nox Sensor input
– Warm-up time :< 9 minutes at 0°C (1 minute minimum ) for full performance
– Response time : < 5 seconds for Co, Co2, HC
– Operating temperature : -10°C to 55 °C
– Storage temperature : -20°C to 70°C
– Humidity : 0 to 95%
– Ambient pressure : 750 mBar to 1150 mBar

Value
. HC
Standard resolution : 0 to 2000ppm
High resolution: Propane 2001 to 20000ppm Propane
. CO 0 to 5%
. CO2 0 to 20%
. O2 0 to 25%
. Nox 0 to 5000 ppm
. Engine speed 0 to 9999 rpm
. Oil temperature 0 to 150°C
. Corrected CO 0 to 10%
. Air/fuel coefficient (Lambda) 0 to 9,99

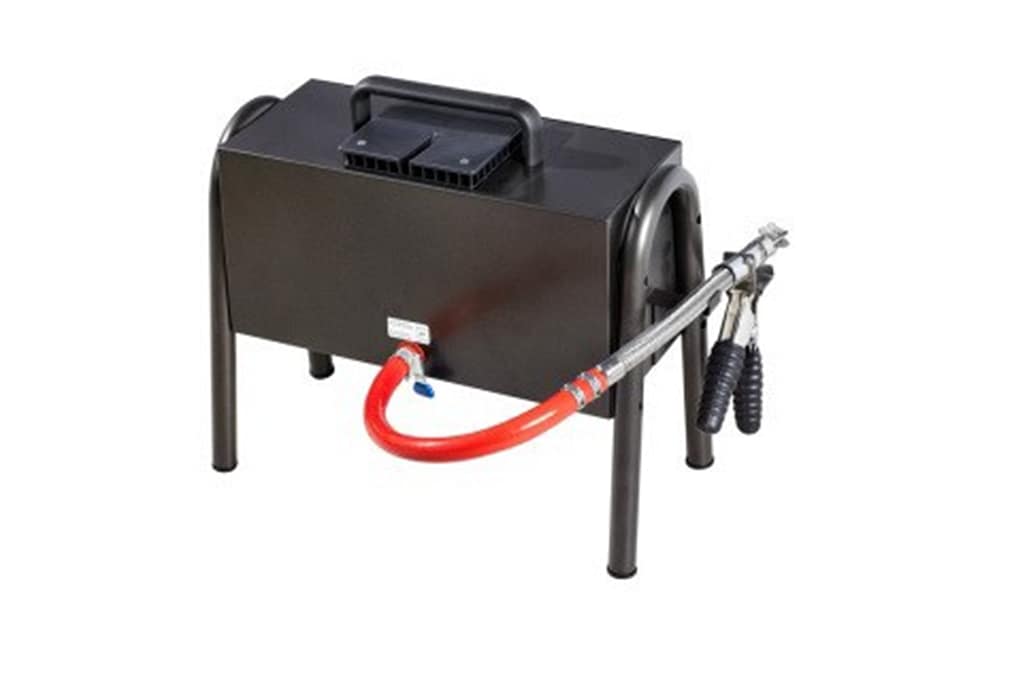

SMOKEMETER

Comply with smoke emission PTI as well as workshops checks
. Opacity curve display feature
. Adjustment to 0 and automatic calibration
. No calibration needed
. Bluetooth (CAP1221)
. Minimum dirt
. Robust and reliable

---

Manufacturer’s website : Capelec

Product website : Capelec-CAP3201-NG

---
